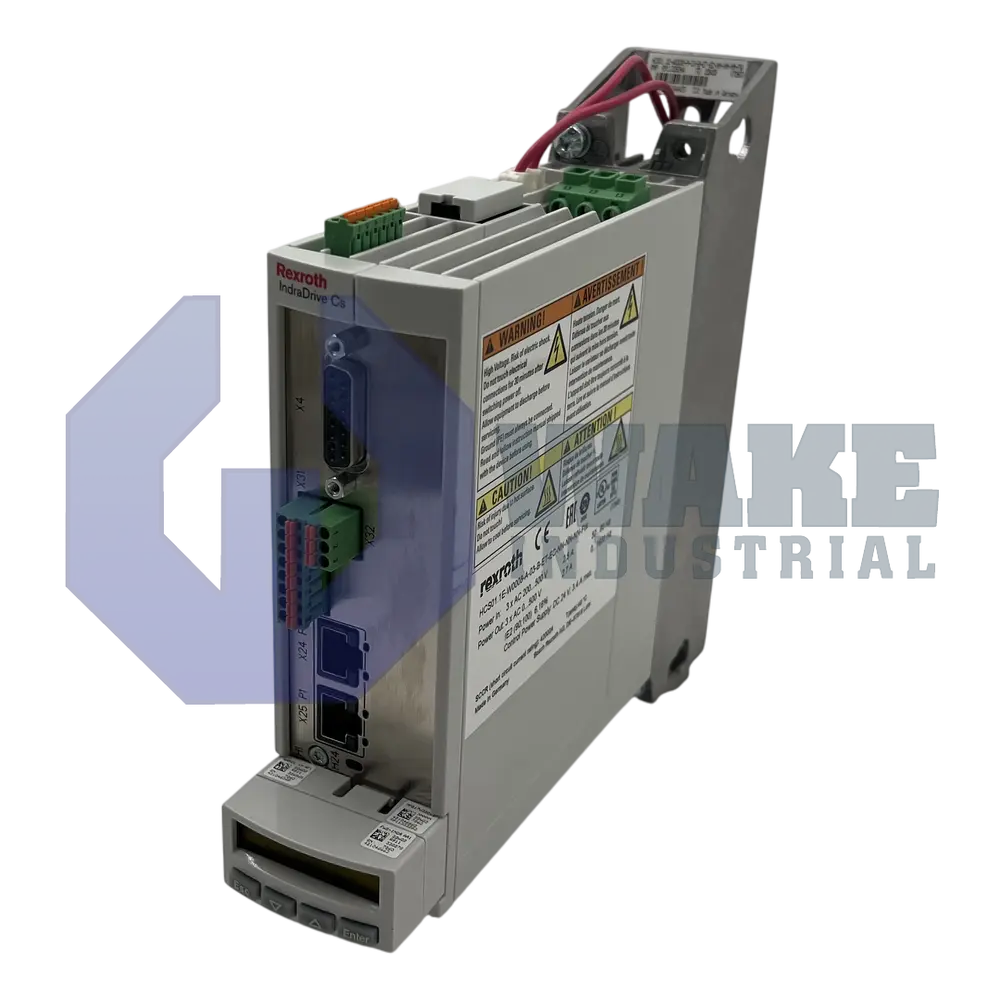

HCS01.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW

Name: HCS01.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW
Brand: Bosch Rexroth Indramat
Price: 289 USD
Availability: InStock
Rating: 4.5 (22 reviews)

Rated 4.5 (22 total ratings)

MPN: R911325246

No Tariffs On US Orders

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 1-2 Days

Preparing your secure checkout page...

The hcs01.1e-w0008_a-03-b-et-ec-nn-nn-nn-fw model supports a three-phase AC 200 - 500 V power supply and weighs 0.72 kilos. The model has a current output rating of 2.7 A. The unit operates at 50 - 60 Hz.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The hcs01.1e-w0008_a-03-b-et-ec-nn-nn-nn-fw model has a MultiEthernet master communication module and is compatible only with the peripherals and components specified. A specific three-phase AC 200 - 500 V power supply module is required for the proper operation of this model.

The HCS01.1 drive controller is intended for use in an industrial setting and may only be used as intended. Failure to utilize it properly may result in scenarios that result in property damage and/or personal harm. With a maximum input current of 8 A, the device runs at its most efficient level. The drive controller with an IP20 rating should not be subjected to high heat. The controller is meant to be cooled by ambient air. Air is circulated by a fan or blower to remove excess heat from the control unit. Air circulation requires adequate space at the top and bottom of a group. The HCS series drive controller must be kept away from devices that generate electromagnetic radiation. Prior to activation, the model must be modified to meet the motor's application-specific specifications.

The model hcs01.1e-w0008_a-03-b-et-ec-nn-nn-nn-fw interface 1 is an IndraDyn/hiperface encoder, and its current output rating is 2.7 A. G1 is the permitted mounting position for the drive controller and houses the power supply unit. The frequency of the feed current should be between 50 and 60 hertz. The model has an insulation resistance of 10 Mohms at 500 V DC and weighs 0.72 kilos. Interface 1 of the model is vacant. The model can only be utilized in accordance with the installation and operating requirements specified in the user manual. Wake Industrial has this Indramat product (hcs01.1e-w0008_a-03-b-et-ec-nn-nn-nn-fw) in stock with a replacement warranty.

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Ambient Temperature Range
0 to +40 degree centigrade

Control Section
Basic

Cooling Type
Internal

Interface 1
IndraDyn/hiperface Encoder

Mains Connection Voltage
200 to 500 VAC

Manufacturer
Bosch Rexroth

Maximum Current
8 Amp

Maximum Installation Height
1000 MSL

Protection Rating
IP20

Series
HCS

HCS011EW0008_A03BETECNNNNNNFW
HCS01 1E W0008_A 03 B ET EC NN NN NN FW
hcs01.1e-w0008-a-03-a-et-ec-nn-s5-nn-fw
HCS1.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW

Error Code	Typical Cause	Corrective Action
F2018	Drive temperature exceeded safe limit due to overload or cooling failure.	Improve cooling, clean air filters, ensure ambient temp <40Â°C, replace fan if needed.
F2019	Motor internal temp too high; excessive load or failed cooling.	Check for blocked airflow, verify motor size for application, fix cooling system.
F2026	DC bus voltage too low due to input voltage dip or phase loss.	Check power supply stability, verify phase integrity, delay shutdowns appropriately.
F8025	DC bus voltage too high due to regen energy or input surge.	Adjust deceleration ramps, add braking resistor, inspect supply for overvoltage.
F8060	Current exceeded peak limit due to short or load spike.	Check for short circuits, reduce load acceleration, increase drive size if needed.
F8057	Drive continuously overloaded beyond continuous rating.	Limit velocity or torque, optimize load cycle, consider higher-rated drive.
F8064	Missing phase current due to cable or winding failure.	Repair or replace damaged wires or motor; verify continuity on all phases.
F8022	Invalid or missing encoder signals due to wiring or encoder fault.	Replace damaged encoder or cable, realign encoder, reinitialize feedback system.
F8070	External 24V supply out of tolerance or failed.	Repair 24V supply, check wiring, replace faulty connectors or PSU.
F9001	Drive firmware/processor failure detected internally.	Attempt firmware reinstallation or replace drive if error persists.

Model Number	Rated Current	Voltage Class	Power Range (approx.)	Typical Application	Interface Options
HCS01.1E-W0005-A-03	5 A peak (2 A continuous)	3× AC 200–500 V (3-phase)	~0.46 kW continuous, 1.38 kW peak	Small servo axes in compact machines (e.g. pick & place devices, lab automation). Ideal for low-power tasks in packaging or assembly equipment.	Multi-Ethernet communication (supports Sercos III, PROFINET, EtherNet/IP, EtherCAT). One multi-encoder interface for feedback; onboard digital I/O. Optional modules for PROFIBUS or CANopen (using option slot). Optional Safe Torque Off (STO) safety input.
HCS01.1E-W0008-A-03	8 A peak (2.7 A cont.)	3× AC 200–500 V (3-phase)	~0.86 kW continuous, 2.58 kW peak	General-purpose servo drive for light-to-medium applications. Used in packaging machinery, assembly systems, and small machine tool axes. Supports moderate motor sizes in printing, textiles, or material handling.	Multi-protocol Ethernet interface (supports EtherCAT, EtherNet/IP, PROFINET, Sercos III) for connectivity. Standard encoder interface (supports Hiperface, EnDat, etc.). Optional expansion for PROFIBUS DP or CANopen fieldbus. STO safety input (optionally upgradeable to SafeMotion).
HCS01.1E-W0018-A-03	18 A peak (7.6 A cont.)	3× AC 200–500 V (3-phase)	~1.7 kW continuous, 5.1 kW peak	Higher-power servo drive for medium-size motors. Common in printing presses, larger packaging lines, and robot axes. Suitable for indexing tables, conveyor drives, or moderate CNC machine axes.	Multi-Ethernet interface (same as above, supports all major industrial Ethernet protocols). Multi-encoder feedback interface. Profibus/CANopen optional addon. Safe Torque Off available (option L3), or Safe Motion with brake control if needed (option L4/S4).
HCS01.1E-W0028-A-03	28 A peak (11.5 A cont.)	3× AC 200–500 V (3-phase)	~2.6 kW continuous, 6.2 kW peak	High-performance compact drive for demanding servo applications. Used for larger actuators in packaging, printing, or as auxiliary drives in machine tools. Can handle higher inertia loads and larger servo motors in assembly systems.	Same multi-Ethernet connectivity for PLC communication. Accommodates additional interfaces (e.g. add a PROFIBUS DP module). Standard encoder and I/O, with option for secondary encoder or emulated encoder output. Advanced safety (Safe Motion) option available on compatible versions (Advanced variant).
HCS01.1E-W0054-A-03	54 A peak (approx. 21 A cont.)	3× AC 200–500 V (3-phase)	~5–6 kW continuous, 12+ kW peak (estimated)	Upper limit of IndraDrive Cs series – supports very large servo motors or high dynamic loads. Used in heavier machinery requiring up to ~9 kW of servo power (e.g. large packaging machines, printing presses, or small automotive assembly robots). Often deployed where a compact form factor is needed for relatively high power.	Same multi-protocol Ethernet interface and feedback support as other HCS01 units. Due to higher power, includes provision for external regen brake resistor. Safety and fieldbus expansion options similar to smaller models (STO, Safe Motion, Profibus, CANopen).
HCS02.1E-W0070	70 A peak (approx. 28–30 A cont.)	3× AC 380–480 V (3-phase)	~15–20 kW continuous, 40+ kW peak (estimated)	IndraDrive C series (mid-power) – a larger drive controller for high-power axes. Used in CNC machine tools (spindles and large feed axes), large printing and converting machines, and heavy material handling systems. Handles the power range beyond IndraDrive Cs, bridging to high-end drives.	Modular communication interfaces: supports multi-Ethernet connectivity (Sercos III, etc.) similar to Cs, and can host additional option cards (e.g. for analog, PROFIBUS, etc.). Integrated 24 V logic supply and optional built-in brake chopper for energy dissipation. SafeMotion safety functionalities (S4/S5 options) available for advanced safety integration.

Ordering Code

HCS01.1E-W0008-A-02-B-ET-EC-NN-NN-NN-FW

HCS01.1E-W0008-A-03-E-S3-EC-NN-NN-NN-FW

HCS01.1E-W0008-A-03-A-CC-EC-NN-NN-NN-FW

HCS01.1E-W0018-A-03-B-ET-EC-NN-NN-NN-FW

HCS01.1E-W0006-A-02-B-ET-EC-NN-NN-NN-FW

HCS01.1E-W0028-A-03-B-ET-EC-NN-NN-NN-FW

HCS01.1E-W0008-A-03-B-ET-EC-PB-L4-NN-FW

HCS01.1E-W0008-A-03-B-ET-EC-CN-L3-NN-FW

HCS01.1E-W0018-A-03-B-ET-EC-NN-S4-NN-FW

HCS01.1E-W0008-A-03-B-ET-EC-DA-NN-NN-FW

Error Code	Description
F2018	Drive’s heat-sink temperature exceeded the allowable limit. The drive automatically shuts down to prevent damage when its internal temperature goes too high (often due to continuous overload or insufficient cooling).
F2019	Motor thermal sensor tripped – the motor has exceeded its thermal limit. The drive decelerates and disables output when the motor is too hot (caused by overloading the motor or cooling failure).
F2026	DC bus voltage fell below the minimum threshold. This typically means the supply voltage dropped or was interrupted – the drive’s DC link is underpowered.
F2190	The drive detected an Ethernet communication setup error (e.g. IP address conflict or config mismatch). This code is often seen when the IndraDrive’s multi-Ethernet interface is not configured correctly for the control system.
F8022	The main feedback encoder’s signals are out of tolerance or lost. The drive has detected invalid or noisy encoder feedback (e.g. due to wiring faults, encoder damage, or electrical noise).
F8025	The DC bus voltage exceeded its allowable upper limit. This usually occurs when the motor regenerates energy faster than it can be dissipated (for instance, during a rapid deceleration) or if the supply voltage is too high.
F8057	The drive has been overloaded continuously beyond its design (I²t limit reached). It’s an accumulated overload fault – the drive’s internal thermal model indicates excessive current draw over time.
F8060	The output current spiked above the drive’s peak current capacity. This immediate fault can result from a short-circuited motor winding or cable, or a sudden mechanical jam causing an extreme torque demand.
F8064	No current in one or more motor phases was detected. The drive sees an open phase condition, often due to a disconnected motor lead or an open winding in the motor.
F8070	The external 24 V control supply voltage is out of range (too low or dropped out). The drive will fault if the control electronics supply falls beyond ±5% tolerance, causing immediate shutdown of drive outputs.

Frequently Asked Questions about HCS01.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW:

Q: What are the power requirements for the HCS01.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW model?

A: This model requires a specific three-phase AC 200 - 500 V power supply. It has a maximum input current of 8 A.

Q: What type of communication module does the HCS01.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW use?

A: The model includes a MultiEthernet master communication module. It only works with specified peripherals and components.

Q: How should the HCS01.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW model be cooled?

A: This drive controller uses ambient air cooling. Ensure proper air circulation with space at the top and bottom.

Q: What is the environmental rating for the HCS01.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW model?

A: The drive controller has an IP20 rating. It should be kept away from high heat and electromagnetic radiation.

Q: What are the specifications for the HCS01.1E-W0008_A-03-B-ET-EC-NN-NN-NN-FW model's mounting position and insulation resistance?

A: The permitted mounting position is G1. The insulation resistance is 10 Mohms at 500 V DC.
