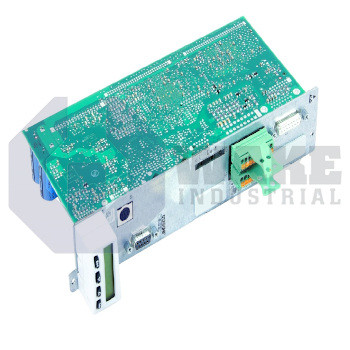

CSB02.1A-ET-EC-NN-L3-NN-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911339883
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
0 Seconds
The Bosch Rexroth Indramat CSB02.1A-ET-EC-NN-L3-NN-NN-FW belongs to the CSB Drive Controllers series and features Multi-Ethernet communication with two RJ-45 8-pin ports. It offers one 14-bit analog input with a ±10 V range, seven digital inputs, and supports a safe torque off safety function. The controller operates on a DC 24 V control supply and has a power consumption of 17 watts.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The CSB02.1A-ET-EC-NN-L3-NN-NN-FW drive controller belongs to the CSB Drive Controllers series produced by Bosch Rexroth Indramat. Installed inside the control cabinet, it links the machine PLC to servo amplifiers and feedback devices while handling trajectory processing, fieldbus traffic, and functional safety for automated production cells. By integrating communication, local I/O scanning, and encoder evaluation in one module, the device shortens wiring runs and simplifies setup of multi-axis systems. This arrangement also keeps motion control and signal handling within the same platform, which helps maintain coordinated machine operation.
Its single analog input accepts a bipolar range of ±10 V, and the value is digitized with 14-bit granularity for high-resolution process signals such as force or tension references. The controller has 7 digital inputs, allowing it to react to limit switches, sensors, or program flags during machine operation. Network traffic moves through the Multi-Ethernet interface, and two ports arranged in line topology terminate on an 8-pin RJ-45 connector that follows the 100Base-TX standard for 100 Mb/s data exchange with PLCs or higher-level IPCs. A multi-encoder interface supports EnDat, SSI, and incremental formats so position data from each axis reaches the motion kernel without separate interface cards.
The module draws only 17 W from its DC 24 V control supply, which helps limit heat buildup inside densely populated cabinets. Its integrated safety channel implements Safe Torque Off; when activated, it removes gate signals from the power stage and can source up to 350 mA on the STO output to feed external relays. Two probe inputs with a minimum pulse width of 4 µs capture encoder marker positions during high-speed processes such as press stamping. The multi-encoder port can source up to 500 mA to power resolvers or optical feedback heads, while the second probe input and the remaining digital lines support time-aligned latching of product or tool positions during fast machine cycles.
Frequently Asked Questions about CSB02.1A-ET-EC-NN-L3-NN-NN-FW:
Q: What is the analog input voltage range of the CSB02.1A-ET-EC-NN-L3-NN-NN-FW drive controller?
A: The CSB02.1A-ET-EC-NN-L3-NN-NN-FW offers a ±10 V analog input range for precise analog signal processing.
Q: What type of Ethernet connectivity is available on the CSB02.1A-ET-EC-NN-L3-NN-NN-FW?
A: This model supports Multi-Ethernet communication via two RJ-45, 8-pin connectors using the 100Base-TX standard.
Q: How many digital inputs does the CSB02.1A-ET-EC-NN-L3-NN-NN-FW drive controller provide?
A: The CSB02.1A-ET-EC-NN-L3-NN-NN-FW includes a total of seven digital inputs for versatile integration with external signals.
Q: What is the maximum encoder supply current for the CSB02.1A-ET-EC-NN-L3-NN-NN-FW's encoder interface?
A: Its encoder interface supports Multi-Encoder setups and can supply up to 500 mA current to encoders.
Q: What safety certification feature is provided by the CSB02.1A-ET-EC-NN-L3-NN-NN-FW drive controller?
A: A Safe Torque Off (STO) function is included, with a STO output current rating of 350 mA for enhanced operational safety.
