How to Fix Indramat EcoDrive Errors

18 December, 2023 | Indramat, EcoDrive, Errors, Fix, Solutions, Guide

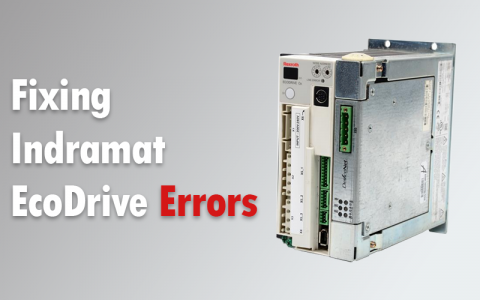

Image of Indramat EcoDrive with title card

Indramat EcoDrive systems play a crucial role in industrial motion control. These advanced drives ensure the smooth operation of various machinery. However, like any sophisticated system, they're not immune to errors. Efficient troubleshooting or consulting an expert like Wake Industrial is vital to maintain the system's performance and avoid costly downtime.

Decoding EcoDrive Error Codes:

Decoding the error codes in EcoDrive systems is like solving a puzzle. Each code tells a different story. There are error codes, warning messages, and status updates. Think of these as the system's way of talking to you.

Error codes usually start with 'F,' signaling something is wrong. Warning messages begin with 'E,' giving you a heads up. Then, there are status messages, starting with 'A,' telling you things are okay. The codes pop up on the drive controller's display, guiding you to what needs attention.

Common EcoDrive Fault Codes and Troubleshooting:

  • F860 Error: Overcurrent

The F860 error is due to overcurrent, often caused by short circuits or incorrect parameter settings. To fix it, check for shorts in the motor cable or adjust the current regulator parameters.

  • F229 Motor Encoder Error:

This error usually points to a faulty encoder cable. Replace the cable or check for interference and controller defects to resolve this issue.

The F248 error signals a battery nearing the end of its life, typically after about 10 years. When you see this message, it's time to replace the battery within two weeks.

  • F234 Emergency Stop:

Triggered by various issues, the F234 error requires you to identify and fix the underlying cause of the emergency stop activation.

  • F219 Error: Motor Overload

This error suggests the motor is working too hard. Check for anything causing the overload and inspect the motor temperature monitor line for issues.

F277 indicates a problem with the drive controller's hardware. Professional repair or replacement of the controller is usually the best course of action.

  • F402 Error: Double MDT Failure

This error occurs when the master data telegram (MDT) fails to reach the drive. Check the fiber optic cables and SERCOS interface for faults.

  • F228 Error: Exceeded Drive Acceleration

This error appears when the drive's acceleration capacity is exceeded. Adjust the torque/force limit parameters and check for mechanical blockages or jams.

Step-by-Step Guide for Error Resolution:

Step 1: Stay Calm

When you encounter an error, keep cool. Panic only leads to hasty decisions. Staying calm helps you think clearly and approach the problem logically.

Step 2: Consult the Manual

Your first move should be to check the manual. It’s a treasure trove of information, offering possible causes and solutions for the error codes.

Step 3: Diagnose and Clear Errors

Start with the most likely causes of the error. Simple checks like cable integrity or parameter settings can often resolve the issue. If the problem persists, systematically work through the manual's suggestions or seek expert guidance.

Step 4: Consult an Expert:

If you've followed the previous steps but still can't identify or fix the error, it's time to seek specialized assistance. You may search "Rexroth Indramat near me" or "Indramat distributor United States" on Google to connect with your nearest repair shop. If you are from North America, Wake Industrial will help you. Our expertise can help diagnose complex issues, suggest effective solutions, and guide best practices to prevent future errors. Don't hesitate to contact us at 1-919-443-0207 for reliable and professional advice.

Wake Industrial: Fixing Indramat Ecodrive Errors like a Pro

Wake Industrial stands out as a trusted provider of Rexroth Indramat products. We specialize in selling, repairing, and purchasing surplus units, showcasing deep expertise in the field.

We deal in a range of Rexroth automation servo drives, and Ecodrive products are one of them. Popular models like DKC01.3-008-3-MGP-01VRS and DKC01.3-004-3-MGP-01VRS cater to diverse industrial needs, ensuring top-notch quality and reliability.

Suppose your DKC drive controller is showing an error, and you are looking for a Rexroth Indramat product repair expert near you. In that case, Wake Industrial should be your first choice. Our repair services are tailored to bring your system back to optimal performance. Just contact us, and we'll handle the rest.
