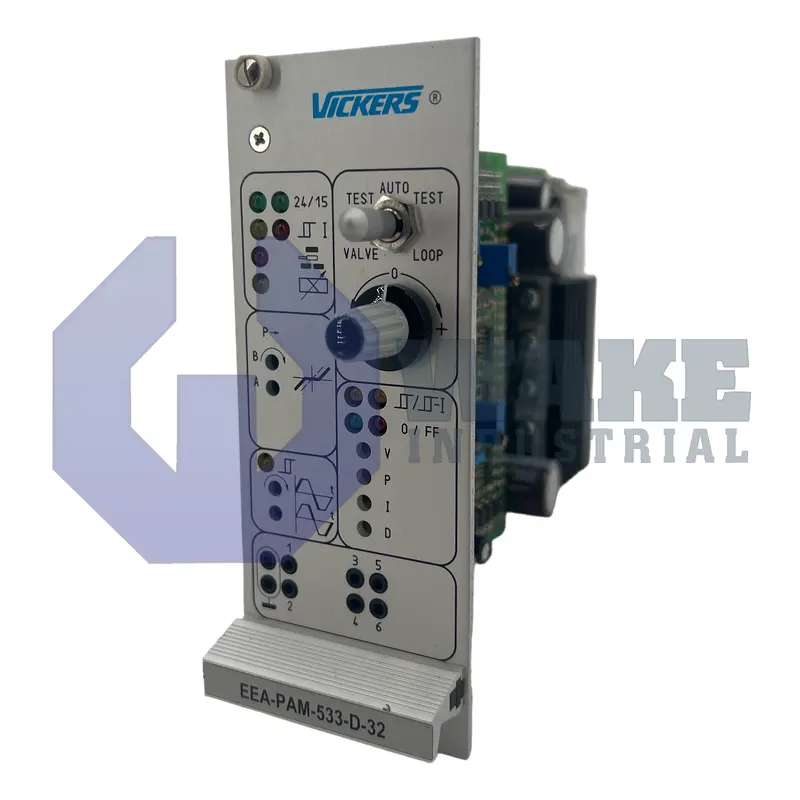

The power amplifier card EEA-PAM-533-D-32 operates with a power output of 50 W. It features short-circuit protection and adjustable ramp-time settings from 50 ms to 5 s for precise control.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

This robust power amplifier card EEA-PAM-533-D-32 operates with a maximum solenoid current of 2.7 A and has an amplifier input current of 0.3 A at 0 V command signal (MP1). The card offers short-circuit protection for all outputs.

The EEA-PAM-533 amplifier card is powered by a nominal 24V DC power supply with a power output of 50 W, ensuring efficient and stable operation. The voltage range for the power supply is between 20 V and 40 V, with protection against reverse polarity. The signal sources for the model include 15 V and 10 V options, accommodating a variety of control signals with maximum peak-to-peak ripple specifications of 50 mV and 20 mV, respectively. The models temperature drift is minimized to less than 1 mV/C, ensuring stable performance across a wide operating temperature range of 0 to 50C (32 to 122F). The factory setting for ramp-time adjustment is approximately 50 ms, with adjustable ranges from 50 ms to 5 s. The EEA-PAM series amplifier card supports direct and inverting voltage inputs ranging from 0 to 10 V and current inputs from 0 to 20 mA. The input impedance is set at 47 k for voltage and 100 for current.

The EEA-PAM-533-D-32 features a deadband compensation adjustment per direction of 0 to 50 % of the maximum spool stroke from the centered position allowing for precise control and minimizing dead zones in valve operation. The model accepts command inputs in both voltage and current forms. The model includes factory-set dither and gain adjustments, with a gain adjustment range per direction of 2.5 to 10% per volt. Wake Industrial has this Vickers card in stock and offers a 1-year warranty upon purchase.

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Amplifier Shut-down
<18 V DC

Command Signal Monitor Point Output
10 kohms short-circuit protected

Dither
Factory-set

Drive Signal Zero Indicator Output Resistance
50 ohms

Manufacturer
Vickers

Nominal Power Supply
24 V DC

Operating Temperature Range
0 to +50 degree centigrade

Ramp-time Adjustment (minimum)
50 ms

Ramps Input
22 kohms

Weight
330 g

EEA PAM 533 D 32
EEA-PAM-533-D-32
EEAPAM533D32

Symptom / LED or Test-Jack Reading	Likely Cause	Corrective Action (Troubleshooting Step)
Green “24 V” LED dark	Card not powered (supply < 20 V DC, fuse open or polarity reversed)	Check cabinet PSU is 24 V DC ± 20 %, inspect DIN-rail fuse & wiring, then repower the card.
Green “15 V” LED dark while 24 V is OK	On-board logic regulator failed	Measure +15 V at monitor pin z22; if 0 V, replace regulator or the complete card.
Yellow “Drive-enable” LED remains off though PLC sends > +10 V to z24	Enable line < +6 V at pin z24 (broken field wire / PLC output)	Trace cable, restore > +10 V, reseat card to reset latch.
Red “Overload” LED lit	Solenoid current > 1.5 A (shorted coil or wrong valve)	Measure coil resistance, inspect cable for shorts; fit correct coil, the LED clears automatically.
Command signal present, no valve movement	PID enable switch D1-D9 off, or gain / set-min* pots fully CCW*	Verify DIL-switch positions (D1–D9) and turn gain / set-min clockwise until MP1 shows ≥ ±0.5 V.
Valve jerks, ramp pots ineffective	Ramp-bypass link b12–b20 left closed	Open the jumper or connect to remote switch to bring ramp generator back in circuit.
MP2 (LVDT feedback) ≠ command or red “LVDT fail” LED	Feedback cable open or wrong pinning (b14 / z22 / b16)	Check 6-pin LVDT connector, repair wiring, re-zero PID controller.
PID integrator saturates (MP6 pegged)	Incorrect I-gain or sensor polarity	Reduce I-gain pot, swap sensor wires, power-cycle to clear saturation.
Red “Sensor fail” LED	Feedback sensor out of range or 0 V	Verify sensor supply ±15 V on z22/z2/b2, replace faulty transducer.
Card resets when ambient > 50 °C	Internal over-temperature	Improve cabinet ventilation, keep card away from heat sources; allow cool-down before restart.

Model	Intended Valve Family	Key Built-in Function	Ramp Options	Feedback / Diagnostic LEDs	Max Solenoid Current (A)
EEA-PAM-533-D-32	KF*G4V-3 proportional spool	User-selectable PID (p, Q, pos., vel.)	Up / Down ramps (pot adj.)	24 V, 15 V, Enable, Overload, LVDT fail, PID status	1.5
EEA-PAM-513-D-32	KCG-3 / KCG-6/8 pressure	K-type pressure PID with p/Q switchover	Single ramp	24 V, 15 V, Enable, Overload	1.5
EEA-PAM-525-D-32	K*G4V-5 high-flow spool	Twin-coil flow control with p/Q switchover	Single ramp, adjustable	24 V, 15 V, Enable, Overload	1.5
EEA-PAM-535-D-32	KF*G4V-5 spool	PID pressure/flow with feed-forward	Dual ramps (↑/↓)	24 V, 15 V, Enable, Overload	1.6
EEA-PAM-541-D-32	KHDG5V-5/7/8 zero-lap spool	Closed-loop position (LVDT) & velocity	PID + dual ramps	LVDT fail, Overload, Enable, 24 V, 15 V	1.8
EEA-PAM-553-D-32	KSDG4V-3 servo spool	Strip-guidance / position PID with dual sensors	Quad-ramp (each quadrant)	Two LVDT fail LEDs, Overload, 24 V, 15 V	2

Indicator / Condition	What It Means
24 V LED off	No or low 24 V DC reaching the card
15 V LED off (24 V LED on)	On-board logic rail missing
Enable LED dark while PLC sends > 10 V	Drive-enable line actually < 6 V at pin z24
Overload LED lit	Coil current > 1.5 A (shorted coil or wrong valve)
Command present but no spool/pressure	Set-minimum or Gain* pots fully CCW*
Ramp pots ineffective / valve jerks	Ramp-bypass link b12–b20 left closed
LVDT-fail LED lit	Feedback sensor open-circuit or out of range
PID integrator saturated (MP6 pegged)	I-gain too high or sensor polarity wrong
Card resets below 19 V	Low-supply protection tripped
All LEDs extinguish at high ambient	Internal over-temperature

Frequently Asked Questions about EEA-PAM-533-D-32:

Q: What are the connectivity options for the EEA-PAM-533-D-32 model?

A: The EEA-PAM-533-D-32 model supports both direct and inverting voltage inputs from 0 to ?10 V. It also accepts current inputs from 0 to ?20 mA.

Q: How does the EEA-PAM-533-D-32 handle power supply variations?

A: The EEA-PAM-533-D-32 operates on a 24V DC power supply with a range of 20 V to 40 V. It includes protection against reverse polarity.

Q: What is the operating temperature range for the EEA-PAM-533-D-32?

A: The EEA-PAM-533-D-32 functions efficiently within an operating temperature range of 0 to 50?C. It ensures stable performance with minimal temperature drift.

Q: How does the EEA-PAM-533-D-32 model manage short-circuit protection?

A: The EEA-PAM-533-D-32 provides robust short-circuit protection for all outputs. This enhances safety and reliability during operation.

Q: What are the gain adjustment capabilities of the EEA-PAM-533-D-32?

A: The EEA-PAM-533-D-32 features factory-set dither and gain adjustments. It offers a gain adjustment range per direction of 2.5 to 10% per volt.

Internal Product Review

‘‘This power amplifier card EEA-PAM-533-D-32 features a maximum solenoid current of 2.7 A and a power output of 50 W. It operates with an amplifier input current of 0.3 A at 0 V command signal and includes short-circuit protection.’’
