EEA-PAM-541-D-32
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Vickers EEA-PAM-541-D-32, from the EEA-PAM-5**-D-32 Power Amplifiers series, operates on a 24V DC nominal supply with a maximum power consumption of 40W. It features 4 configurable analog inputs and 6 relay digital outputs. The unit has a protection class of IP20 and dimensions of approximately 180x70x128mm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

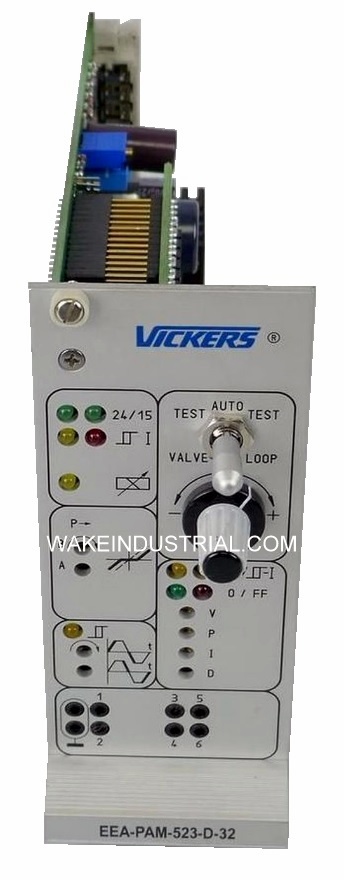

The EEA-PAM-541-D-32 is manufactured by Vickers as a power amplifier that belongs to the EEA-PAM family of products with built-in closed-loop control. It applies to proportional directional valves featuring LVDT feedback. The amplifier features internal PID control having variable P, I and D gain settings. It has a signal input voltage of ±10 V and an input current of ±20 mA with an impedance of 47 kΩ and 100 Ω respectively.
The EEA-PAM-541-D-32 amplifier features an analog output signal of 10 V with short-circuit protection and at least 10 k load impedance. It takes 24V logic signals to enable the drive, ramps, integrator and PID controller. Digital outputs provide signals of alarm, sensor failure and feedback deviation. The EEA-PAM amplifier has internal ramp generators that are variable between 50 ms and 5 seconds. A test potentiometer can be used to override the signal manually to perform set up checks and its mode switch allows the selection of either test loop, test valve or auto mode. The front panel LED indicates drive signal zero, 24V power, 15V control voltage, solenoid output, PID enabled and LVDT failure. The amplifier has 6 monitor points from MP1 to MP6. MP1 shows the command signal and MP2 indicates LVDT feedback. MP3 is applied to command input monitoring and MP4 to for feedback signal. MP5 and MP6 displays PID output and integrator response.
The EEA-PAM-541-D-32 amplifier’s all monitor points are on standard 2 mm sockets and installation of the amplifier is done using a DIN 41612 F48 male connector. The unit is 24V DC operated and it provides internal ±15V control power. The EEA-PAM amplifier is in accordance with EMC directive 2014/30/EU and its weight is about 0.4 kg.
Frequently Asked Questions about EEA-PAM-541-D-32:
Q: How does the internal PID control benefit the performance of the EEA-PAM-541-D-32?
A: The internal PID control allows for fine-tuning of system performance by adjusting proportional, integral, and derivative gains, ensuring optimal response in dynamic valve control applications.
Q: What is the purpose of the external control for the ramp functions?
A: The external control for ramp functions allows users to adjust the ramp speed (50ms to 5 seconds), providing flexibility in controlling the rate of change for system variables like pressure or flow.
Q: Why does the EEA-PAM-541-D-32 include digital outputs for alarm and sensor failure?
A: The digital outputs provide immediate alerts for critical issues like feedback deviations or sensor failure, ensuring prompt corrective action is taken to prevent system malfunctions or damage.
Q: What makes the EEA-PAM-541-D-32 suitable for use in industrial environments?
A: With compliance to the EMC Directive 2014/30/EU, the amplifier ensures minimal electromagnetic interference, making it ideal for industrial environments where signal integrity is crucial.
Q: How does the built-in 2mm test sockets enhance the troubleshooting process?
