N32HLLJ-LNK-NS-01

  • Rated 4.4 (36 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The N32HLLJ-LNK-NS-01 was manufactured by Pacific Scientific but has since been passed to Kollmorgen. The N32HLLJ-LNK-NS-01 features a phase inductance of 26 mH Typical and a phase resistances of 2.53 Ohms +/- 10%. The N32HLLJ-LNK-NS-01 features a rated current of 2.5 Amps DC and a dentent torque of 0.25 Nm making it a top choice for any motor needs.

Wake Industrial LLC is not an authorized distributor of this product.

N32HLLJ-LNK-NS-01

  • Rated 4.4 (36 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The N32HLLJ-LNK-NS-01 was manufactured by Pacific Scientific but has since been passed to Kollmorgen. The N32HLLJ-LNK-NS-01 features a phase inductance of 26 mH Typical and a phase resistances of 2.53 Ohms +/- 10%. The N32HLLJ-LNK-NS-01 features a rated current of 2.5 Amps DC and a dentent torque of 0.25 Nm making it a top choice for any motor needs.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

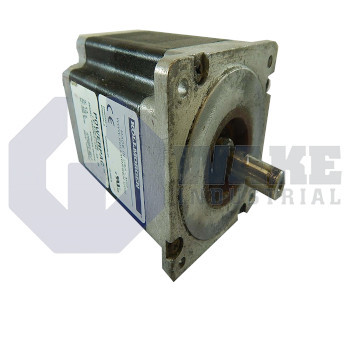

The N32HLLJ-LNK-NS-01 motor, produced by Pacific Scientific, is a standard hybrid stepper motor with high torque capacity with respect to its frame size.

The motor showcases the superior design of Pacific Scientific motors in terms of its physical and performance specifications. It has a frame size equivalent to the standard NEMA 34 motor size, and it features a two-stack rotor with a heavy duty standard NEMA mount. The motor has a rugged design with a splash proof and IP65 protection. It is hooked up to a terminal board via a conduit connector, and for the winding option, it comes with a bi-polar series lead (4 leads/windings) with ‘K’ type winding.

It uses a single shaft type with a keyway, along with a shaft seal at the motor’s rear end. Also, it has a laminated rotor and no encoder feedback for closed loop control. For the motor’s performance: it can produce a holding torque of 8.79Nm and a small detent torque of 0.25Nm. The detent torque is meant to aid deceleration but is kept small to maximize torque output. It is rated in terms of its phase current, resistance, and inductance as: 3A, 1.8 ohms, 20.6mH. The increased resistance and inductance values are due to its series winding, which helps to protect against large currents that could cause excess heating. The motor also has a rotor inertia of 2.7 ×10-4 kgm2 which allows it a maximum loading inertia of 2.7 ×10-3 kgm2 for a 10:1 inertia ratio compliance. This ensures good performance.

The N32HLLJ-LNK-NS-01 is not designed to be the fastest of its variants, especially due to its series connection. The goal is to produce an efficient stepper motor that maximizes the lifespan of its components via a good heating and cooling policy, while delivering a significant holding torque.

  • N32-HLLJ-LNK-NS-01
  • N32HLLJ LNK NS 01
  • N32HLLJ-LNK-NS-O1
  • N32HLLJLNKNS01

N32HLLJ-LNK-NS-01 Technical Specifications

:
Phase Inductance: 26 mH Typical
Thermal Resistance : 2.0 Mounted Degrees Celsius /Watt
Rotor Inertia: 0.27 kg-m2 x10-3
Rated Current : 2.5 Amps DC
Basic Series: Standard
Phase Resistance : 2.53 Ohms +/- 10%
Detent Torque : 0.25 Nm
Encoder Option/Special Sequence: No feedback/Standard motor with shaft seal
Size: NEMA 34 frame size; 3.38 width/height, square frame
Number of Rotor Stacks: 2 Stacks
Mounting Configuration: Heavy duty NEMA
Construction/Hookup: Splashproof/to terminal board via conduit connector: 1/2 NPSC pipe thread
Winding Leads: 4 Lead series
Winding Type: Standard
Rotor Type: Laminated
Shaft Configuration/Shaft Modifications: Single
