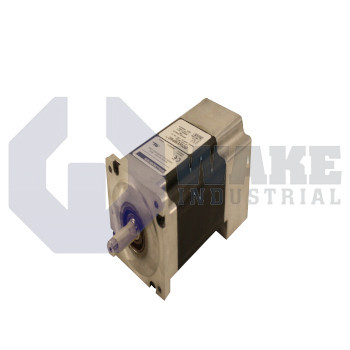

The Pacific Scientific N32HLHJ-LNK-NS-01 is a stepper motor from the POWERPAC N Stepper Motors series featuring a 3.38 inch square NEMA 34 frame and a motor length of 133 millimeters. It delivers a holding torque of 8.6 Newton-meters and achieves 200 full steps per revolution with a 1.8 degree step angle. The motor has a single shaft with a straight key and includes a shaft seal, while its connection style is splashproof to the terminal board via conduit.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The N32HLHJ-LNK-NS-01 is a stepper motor produced by Pacific Scientific in the POWERPAC N Stepper Motors series. Intended for industrial automation, the unit translates drive pulses into accurate rotary motion so indexing conveyors, cut-to-length knives, and small gantry axes reach repeatable positions without closed-loop feedback. With its heavy-duty mounting pattern and sealed shaft, it suits environments where moderate washdown and mechanical shock can be expected.
The NEMA 34 flange establishes industry-standard pilot and bolt dimensions, while a 3.38 in. square frame sets the body envelope; overall length is 133 mm. Two rotor stacks and laminated cores work with standard windings to produce 8.6 Nm of holding torque. Each electrical step shifts the rotor by 1.8°, giving 200 full steps per revolution, and motion remains within a ±3% accuracy band under rated current. A single shaft with a straight key simplifies coupling, and a shaft seal helps prevent lubricant leakage. Heavy-duty NEMA mounting holes allow direct fastening to plates or gearheads, and the motor operates in standard open-loop control because no feedback device is installed.
The windings carry up to 340 Vdc, and insulation paths test to 100 Megohms, limiting leakage during rapid temperature swings. A 4-lead parallel configuration presents low phase resistance for higher current microstepping, while the conduit entry is tapped with a 1/2 in. NPSC pipe thread that provides a splash-proof route to the terminal board. This connection style removes external glands and helps keep moisture away from live conductors. Standard construction materials dissipate heat through the frame so cyclic starting duties stay inside thermal limits. The motor is suitable for synchronized feeders, bottle cappers, and moderate-speed XY tables.
Frequently Asked Questions about N32HLHJ-LNK-NS-01:
Q: What is the holding torque of the N32HLHJ-LNK-NS-01 stepper motor?
A: This model produces a holding torque of 8.6 Nm, offering substantial force for positioning applications.
Q: What kind of shaft and sealing does the N32HLHJ-LNK-NS-01 have?
A: The N32HLHJ-LNK-NS-01 features a single shaft with a straight key and an integrated shaft seal.
Q: How many steps per revolution does the N32HLHJ-LNK-NS-01 stepper motor provide?
A: This stepper motor provides 200 full steps per revolution, with each step at a 1.8° angle.
Q: What are the frame specifications of the N32HLHJ-LNK-NS-01?
A: The N32HLHJ-LNK-NS-01 is built with a NEMA 34 heavy duty frame, measuring 3.38 inches square.
Q: What type of leadwire configuration is used in the N32HLHJ-LNK-NS-01?
A: This motor uses a 4-lead parallel leadwire configuration.
