P22NSXA-LNF-NS-02

  • Rated 4.6 (22 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

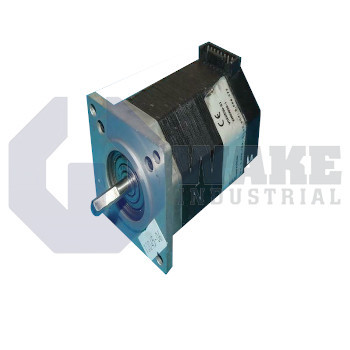

The P22NSXA-LNF-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.39 Nm and a detent torque of 0.12 Nm.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

P22NSXA-LNF-NS-02

  • Rated 4.6 (22 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

The P22NSXA-LNF-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.39 Nm and a detent torque of 0.12 Nm.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Pacific Scientific designs top class motion control systems for industrial automation. The company has gained expertise in manufacturing compact stepper motors.

The P22NSXA-LNF-NS-02 is a high power stepper motor that produces the highest amount of torque in its size and speed range. This frame hybrid stepper comes with optimized magnetics and an improved rotor and stator design. This enables the motor to produce the highest acceleration rates on top of increased torque. The motor has a 1.13 kg weight and it can produce a 1.39 Nm holding torque. This model comes with polymer end bells with threaded inserts. This provides greater flexibility in mounting and brake options. The P22NSXA-LNF-NS-02 belongs to the NEMA 23 category motors and its standard version comes with 8-poles. Despite an economical motor design, high-quality performance is ensured with this stepper. A hone stator and a precision ground rotor ensure that a concentric air gap is always maintained.

The P22NSXA-LNF-NS-02 has a 0.42 ohm resistance per winding and a rated current of 6.5 A per winding. This model comes with a large shaft diameter. With a 6.3 mm shaft diameter, the motor has the largest shaft diameter among NEMA 23 class motors. Because of this, the outer shaft is able to sustain much more radial and axial loads. Many shaft modifications are also possible owing to a larger diameter. This model comes with exposed laminations that are specifically designed to facilitate the thermal dissipation process and maintain an optimum motor temperature. The motor’s armature is insulated with class B insulation materials. This enables the armature to sustain temperatures up to 266 ᵒ F. The P22NSXA-LNF-NS-02 is a two-phase motor and comes with a full step angle of 1.8 ᵒ.

  • P22 NSXA LNF NS 02
  • P22-NSXA-LNF-NS-02
  • P22NSXA LNF NS 02
  • P22NSXA-LNF-NS-O2
  • P22NSXALNFNS02
  • P22NSXALNFNSO2

P22NSXA-LNF-NS-02 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 1.13 kg
Type: Standard
Thermal Resistance: 4.5 Mounted °C/Watt
Rotor Inertia: 0.025(kg-m²x10¯³)
Holding Torque: 1.39 Nm
Detent Torque: 0.12 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Special
Termination: Receptacle
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Single/Flat
