P22NSXA-LDN-NS-02

  • Rated 4.4 (13 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The P22NSXA-LDN-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.39 Nm and a detent torque of 0.12 Nm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

P22NSXA-LDN-NS-02

  • Rated 4.4 (13 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The P22NSXA-LDN-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.39 Nm and a detent torque of 0.12 Nm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a P22NSXA-LDN-NS-02 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Pacific Scientific is an engineering company that manufactures state of the art servo motors, stepper motors, and synchronous motors for industrial automation.

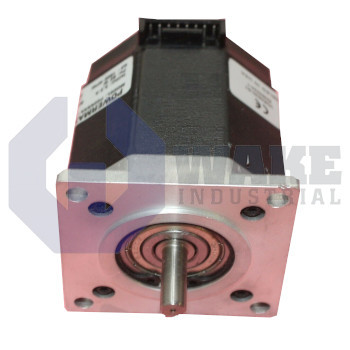

The P22NSXA-LDN-NS-02 is a compact stepper motor produced by Pacific Scientific. The motor has an impressive torque to frame size ration and produces the most amount of torque in NEMA 23 motors. The stepper motor produces a 1.39 Nm torque and has a 6.5 A rated current per winding. This model comes with a polymer encapsulated stator that results in excellent thermal dissipation. This protects the motor from overheating during prolonged periods of operation. The P22NSXA-LDN-NS-02  has an increased fatigue life and can sustain many more cycles of loading. This is because of its oversized bearings (30 mm instead of the normal 22 mm). This also prolongs the motor’s operational life. The motor comes with a full step angle of 1.8 ᵒ and its shaft has a 6.3 mm diameter.

The P22NSXA-LDN-NS-02 has a CE approval. Because of an optimized housing design, the motor has a really efficient cooling mechanism. This model has a 0.42 ohm resistance and 0.8 mH inductance per winding. The motor can sustain an increased amount of radial and axial loads because of its oversized bearings and larger shaft diameter. To ensure a concentric air gap, the model comes with a honed stator and a precise ground rotor. The P22NSXA-LDN-NS-02 is compatible with the smart Sigmax Technology that increases the amount of available torque for any motor. Optionally, a low inertia rotor can be used with this model that allows the shaft to accelerate at very high rates. Because of low inertia, this model is able to achieve the highest dynamics in very short positioning times.

  • P22 NSXA LDN NS 02
  • P22-NSXA-LDN-NS-02
  • P22NSXA LDN NS 02
  • P22NSXA-LDN-NS-O2
  • P22NSXALDNNS02
  • P22NSXALDNNSO2

P22NSXA-LDN-NS-02 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 1.13 kg
Type: Standard
Thermal Resistance: 4.5 Mounted °C/Watt
Rotor Inertia: 0.025(kg-m²x10¯³)
Holding Torque: 1.39 Nm
Detent Torque: 0.12 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Special
Termination: Receptacle
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Double/Smooth
