P22NSHS-LNS-NS-02

  • Rated 4.5 (35 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships in 3 Days
  • Call for Expedited Shipping and Product Condition Options

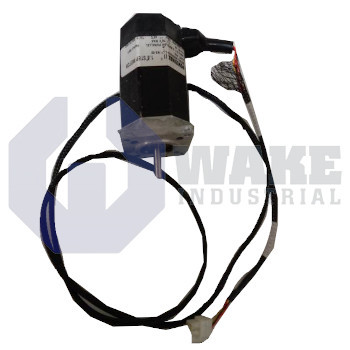

The P22NSHS-LNS-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of and a detent torque of 0.12 Nm.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

P22NSHS-LNS-NS-02

  • Rated 4.5 (35 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships in 3 Days
  • Call for Expedited Shipping and Product Condition Options

The P22NSHS-LNS-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of and a detent torque of 0.12 Nm.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Pacific Scientific is an engineering firm that is known for its top quality automation equipment. The company has a wide assortment of industrial motors.

The P22NSHS-LNS-NS-02 is a compact stepper motor from the NEMA 23 class motors. The motor generates the largest amount of torque in its speed and size range. Because of additional magnets in the stator slots, an increased amount of torque is produced. The motor has a low detent torque that results in smooth microstepping. This model makes use of a new rotor/stator design that generates more torque and enables the motor to achieve greater acceleration rates. This model features neodymium iron boron magnets that are very powerful magnets. Neodynium permanent magnets generate a great amount of flux and energy density. This contributes to greater magnetic flux. Precision ground rotor OD enables the motor to give an unhindered performance because a concentric air gap is ensured.

The P22NSHS-LNS-NS-02 has a customized flange and shaft design. The shaft used for this model has a 6.3 mm diameter that is the largest among NEMA 23 motor shaft diameters. As a result, the P22NSHS-LNS-NS-02 can work with a greater amount of loads that are applied along and perpendicular to the shaft axis. This model has a full 1.8 ᵒ angle. Special arrangements have been made to assist heat dissipation in this model. With the help of exposed lamination aids and a polymer encapsulated rotor, heat is continuously dissipated from the system. As a result, thermal overload and overheating failure are prevented. The model also comes with polymer end bells that have threaded inserts. This results in more freedom while installing encoder and brakes with the system. The P22NSHS-LNS-NS-02 also has an IP 23 standard ingress protection.

  • P22 NSHS LNS NS 02
  • P22-NSHS-LNS-NS-02
  • P22NSHS LNS NS 02
  • P22NSHS-LNS-NS-O2
  • P22NSHSLNSNS02
  • P22NSHSLNSNSO2

P22NSHS-LNS-NS-02 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 1.13 kg
Type: Standard
Thermal Resistance: 4.5 Mounted °C/Watt
Rotor Inertia: 0.025(kg-m²x10¯³)
Holding Torque: 1.39
Detent Torque: 0.12 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Special
Termination: Special
Winding Type: Special
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Single/Special
