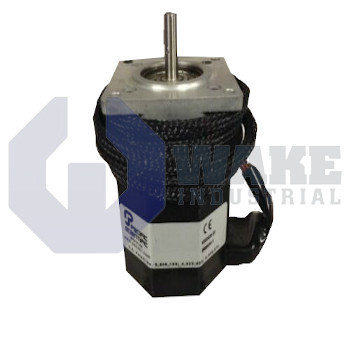

The P22NSHA-LNF-NS-03 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.39 Nm and a detent torque of 0.12 Nm.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

P22NSHA-LNF-NS-03

  • Rated 4.4 (38 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options

The P22NSHA-LNF-NS-03 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.39 Nm and a detent torque of 0.12 Nm.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The P22NSHA-LNF-NS-03 is a high efficiency hybrid step motor, with innovative and quality design, made by Pacific Scientific as a motion control automation technology.

The Pacific Scientific designed the motor in such a way that users can order it to be tailored to their in-plant specifications, to get the exact functionality they need. The Pacific Scientific makes sure that each highly flexible construction   meet IEC (International Electro-technical Commission) IP65 and are also adequate for wash-down requirements.This enhanced hybrid motor, the P22NSHA-LNF-NS-03, offers bidirectional acceleration or deceleration and efficient position control, coupled with high torque-to-inertia ratios that provide high acceleration rates to enable faster loads movement.

The P22NSHA-LNF-NS-03 also features long life bearings (through its oversized 30mm bearings),

high temperature insulation (enabled by the new polymer encapsulated stator and exposed laminations), and quality magnetic materials (that gives it its low inertia and lightweight). Additionally, the motor features an efficient timing belt that enables relatively no backlash, a ±3% of one full step, no load, non-cumulative angular accuracy, 200 full steps per revolution, 1.8° full step angle, -20° to 40° operating temperature, large diameter shaft that enables large load carriage, NEMA Class B with 130°C insulation, 100 Megohms @500V dc and 25°C insulation resistance, and a two year warranty at adequate environmental conditions.

The P22NSHA-LNF-NS-03 motor can come in three different rotor stack selections (the half stack, the full stack, and the double stack) with holding torque ranging  between 42 to 253 oz-in.The Pacific Scientific motors offer a fully programmable motion control functions with the highest torque per frame and impressive range of torque output than you can find in any similar motor.

  • P22 NSHA LNF NS 03
  • P22-NSHA-LNF-NS-03
  • P22NSHA LNF NS 03
  • P22NSHA-LNF-NS-O3
  • P22NSHALNFNS03
  • P22NSHALNFNSO3

P22NSHA-LNF-NS-03 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 1.13 kg
Type: Standard
Thermal Resistance: 4.5 Mounted °C/Watt
Rotor Inertia: 0.025(kg-m²x10¯³)
Holding Torque: 1.39 Nm
Detent Torque: 0.12 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Special
Termination: Factory Assigned
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Single/Flat
