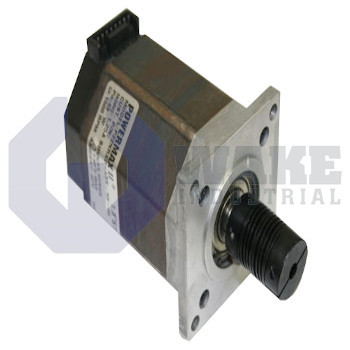

The P22NRXD-LSN-NS-03 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.43 Nm and a detent torque of 0.12 Nm.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

P22NRXD-LSN-NS-03

  • Rated 4.3 (6 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

The P22NRXD-LSN-NS-03 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.43 Nm and a detent torque of 0.12 Nm.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The P22NRXD-LSN-NS-03 is a high efficiency, hybrid stepper motor designed by Pacific Scientific as part of its motion control technology. The motor was made with precision ground rotor OD and honed stator ID to provide a concentric air gap in an economical motor design.

The P22NRXD-LSN-NS-03 motor has an improved heat dissipation system that reduces downtime and extends the motor life through the use of polymer encapsulated stator and exposed laminations, and the motor life is further extended by its oversized 30mm bearings.

The motor features new polymer end bell with threaded inserts that provides greater

flexibility in mounting the encoder and brake options. Not only that, the motor offers a ±3% of one full step, no load, non-cumulative angular accuracy, 200 full steps per revolution at 1.8° full step angle, -20° to 40° operating temperature (the motor comes with two years warranty if used under adequate environmental conditions), and NEMA Class B with 130°C insulation, 100 Megohms @500V dc and 25°C insulation resistance.

The motor has adequate wash-down construction, IP65 standard protection design, easily controlled timing belt that prevents backlash, bidirectional acceleration or deceleration for adequate position control, has compacted structure built with magnetic materials that impact it with low inertia mass and lightweight.

The P22NRXD-LSN-NS-03 motor can come with three different holding torque ranges depending on the selection (42-61 for half rotor stack selection, 77-116 for full rotor stack selection and 138-214 for double rotor stack selection).

Pacific Scientific ensures flexible manufacturing of the motor in such a way that whether you need a simple drive shaft flat or an integral lead screw, the motors are sure to be made to your order.

  • P22 NRXD LSN NS 03
  • P22-NRXD-LSN-NS-03
  • P22NRXD LSN NS 03
  • P22NRXD-LSN-NS-O3
  • P22NRXDLSNNS03
  • P22NRXDLSNNSO3

P22NRXD-LSN-NS-03 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 1.13 kg
Type: Standard
Thermal Resistance: 4.5 Mounted °C/Watt
Rotor Inertia: 0.025(kg-m²x10¯³)
Holding Torque: 1.43 Nm
Detent Torque: 0.12 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Regular
Termination: Receptacle
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Special/Smooth
