P22NRXA-LSF-NS-02

  • Rated 4.4 (14 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships in 3 Days
  • Call for Expedited Shipping and Product Condition Options

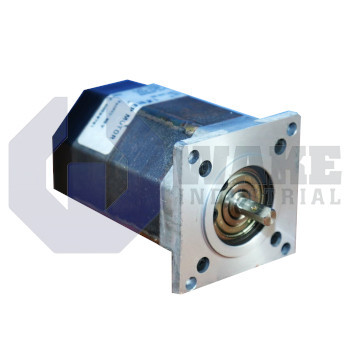

The P22NRXA-LSF-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 6.6 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of .42 Nm and a detent torque of .018 Nm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

P22NRXA-LSF-NS-02

  • Rated 4.4 (14 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships in 3 Days
  • Call for Expedited Shipping and Product Condition Options
The P22NRXA-LSF-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 6.6 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of .42 Nm and a detent torque of .018 Nm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a P22NRXA-LSF-NS-02 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The Powermax II series are an impressive part of the Pacific Scientifc production line for stepper motors. In line with the NEMA sizing for stepper motors, they offer the best performance within the NEMA 23 size category. The P22NRXA-LSF-NS-02 belongs to the Powermax II P-series, which is a hybrid construction that offers specific advantages in the way of customization.

Being a Powermax motor, the P22NRXA-LSF-NS-02 comes in the standard NEMA 23 frame size and is also fitted with a standard NEMA mount. Weighing at 1.13kg, it features a regular construction/design (for a Powermax motor) and is equipped with two full rotor stacks and an integrated mating lead receptacle for electrical connections. A stepper motor’s mechanical performance being characterized by its winding type, the P22NRXA-LSF-NS-02 has a winding code with the ‘A’ designation, and this winding can be connected either in series, parallel or unipolar to achieve specific performance boosts or low. This motor has a holding torque capacity of 1.39Nm in both series and parallel connections, but 0.98Nm for the unipolar; however, the torque trade-off offers more speed for the unipolar. To prevent unwanted rotations, it has a detent torque of 0.049Nm which also helps during deceleration. For the electrical properties of this motor, it has a maximum rated phase current capacity of 6.5A achievable with the parallel winding. For the others, it can produce 3.3A and 4.6A for the series and unipolar connections respectively. This is a standard rotor motor with a flat and specially configured shaft. With no option for feedback via an encoder, this motor still offers an option for applications that require precise movements with minimal control requirements.

With the allowance for factory assigned customization (due to its ’02’ sequence number), this motor offers improved versatility across industrial applications.

  • P22 NRXA LSF NS 02
  • P22-NRXA-LSF-NS-02
  • P22NRXA LSF NS 02
  • P22NRXA-LSF-NS-O2
  • P22NRXALSFNS02
  • P22NRXALSFNSO2

P22NRXA-LSF-NS-02 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 1.13 kg
Type: Standard
Thermal Resistance: 6.6 Mounted °C/Watt
Rotor Inertia: 0.025(kg-m²x10¯³)
Holding Torque: .42 Nm
Detent Torque: .018 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Regular
Termination: Receptacle
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Special/Flat
