P21NSXS-LSS-NS-04

  • Rated 4.1 (14 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options

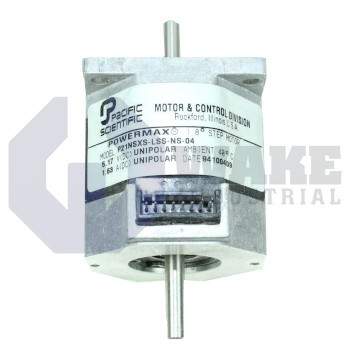

The P21NSXS-LSS-NS-04 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of .012 (kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.78Nm and a detent torque of .12 Nm.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

P21NSXS-LSS-NS-04

  • Rated 4.1 (14 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options

The P21NSXS-LSS-NS-04 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of .012 (kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.78Nm and a detent torque of .12 Nm.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

P21NSXS-LSS-NS-04 product code is a special purpose stepper motor, which has many special features, configurations and capabilities. This is also a type of P series motor that has different configurations to fulfill the special requirements in the field of electronic appliance manufacturing and industrial automation.

This stepper step DC hybrid motor is also a single stack motor with NEMA 23 standard compliance. The size of this motor is 2.3 inches of length and 2.3 inches of flange measurement. The mounting of this stepping DC motor is special as indicated by S in SXS code, in which X indicates that the connection termination type is receptacle and S indicates special type of winding is used in the motor winding. This is a two phase DC motor that produces 0.77 Nm step holding torque power. The number of steps to complete a revolution is 200. Each step of this hybrid stepper DC motor covers 1.8 degrees of displacement.

This motor has a standard rotor. Both the shaft configuration and shaft modification of this motor are specially designed as mentioned in LSS code. P21NSXS-LSS-NS-04 hybrid motor has no feedback system integrated as mentioned by NS in the name code. There are four components that are custom designed as indicated 04 at the end of the code. You can use other than factory assigned components in the place of custom components.

The rotor of this DC stepping step hybrid motor consists of laminated material, which offers great speed efficiency required for the holding torque based automation processes. The accuracy of this motor in terms of movement is about ±3% of a single step displacement. The manufacturer of this stepping step motor is Kollmorgen Inc based in Virginia, USA.

  • P21 NSXS LSS NS 04
  • P21-NSXS-LSS-NS-04
  • P21NSXS LSS NS 04
  • P21NSXS-LSS-NS-O4
  • P21NSXSLSSNS04
  • P21NSXSLSSNSO4

P21NSXS-LSS-NS-04 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 0.45 kg
Type: Standard
Thermal Resistance: 4.5 Mounted °C/Watt
Rotor Inertia: .012 (kg-m²x10¯³)
Holding Torque: 1.78Nm
Detent Torque: .12 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 1 Stack
Mounting: NEMA
Construction: Special
Termination: Receptacle
Winding Type: Special
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Special/Special
