P21NSXC-LSS-NS-14

  • Rated 4.5 (35 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options

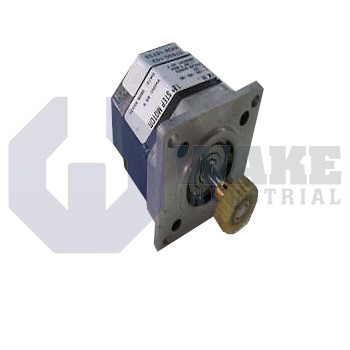

The P21NSXC-LSS-NS-14 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of .012 (kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.68 Nm and a detent torque of .12 Nm.

✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

P21NSXC-LSS-NS-14

  • Rated 4.5 (35 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: Available
  • Call for Expedited Shipping and Product Condition Options

The P21NSXC-LSS-NS-14 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of .012 (kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.68 Nm and a detent torque of .12 Nm.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Pacific scientific covers a wide variety of motion applications ranging from small to more powerful innovative and high-quality designs that are reliable with high performance.  With the use of techniques like data networking as well as benchmarking support, Pacific scientific commits to quality and continuous enhancement of its operations and production.

The new innovation of the P21NSXC-LSS-NS-14 motors comes with 1 rotor stack and a series arrangement. Its standard inertia rotor rates as 1.68 to 0.010 kgm 2 X 10 -3 while the low inertia rotor rates at 1.30 to 0.008 kgm 2 X 10 -3.  High acceleration rates possible are achieved with the low inertia rotor. The P21NSXC-LSS-NS-14 motors’ holding torque rates as 116 to 0.82 Nm while the detent torque rate as 4 to 0.028 Nm.  The rated current of the motor is 3.5 A with a phase resistance of 0.53 Ω and thermal resistance of 5.5 0 C /watt. It is important to note that the thermal resistance is measured with the motor hanging in still air (unmounted).  With the application of rated current, winding is done at 130 0 C and at 40 0 C when the motor is in still air (unmounted) without the use of a heat sink. Any operation beyond the rated current will lead to the demagnetization of the motor. In the event of such an occurrence please contact the factory.

The net weight of the P21NSXC-LSS-NS-14 motors ranges between 1.5 to 0.68 kg with the phase inductance standing at 2.3 mH.  Small signal inductance as measured with impedance bridge at 1 kHz, 1 A. Finally, the above ratings and characteristics are typical at 25 0 C unless noted otherwise.

  • P21 NSXC LSS NS 14
  • P21-NSXC-LSS-NS-14
  • P21NSXC LSS NS 14
  • P21NSXCLSSNS14

P21NSXC-LSS-NS-14 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 0.45 kg
Type: Standard
Thermal Resistance: 4.5 Mounted °C/Watt
Rotor Inertia: .012 (kg-m²x10¯³)
Holding Torque: 1.68 Nm
Detent Torque: .12 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 1 Stack
Mounting: NEMA
Construction: Special
Termination: Receptacle
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Special/Special
