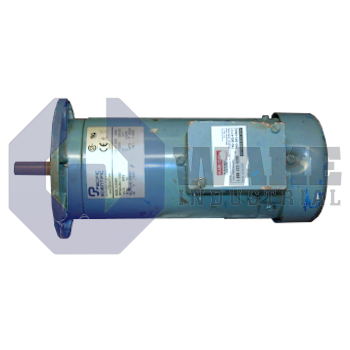

SR3720-3798-2A-56C

  • Rated 4.4 (19 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options

Permanent Magnet DC Motor Series manufactured by Pacific Scientific. This motor features a Voltage (DC) of 90 and a Current (Amps) of 2.5.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Motion control is a field that has so many applications, each with different needs and end-results. To provide the best solutions to their queries, Pacific Scientific have introduced thousands of parts, including drive systems, servo systems, servo motors, general-purpose motors, motion controllers and more. SR PMDC motor series is one example of the company’s engineering genius that has been satisfying customers for nearly 5 decades. The SR3720-3798-2A-56C is a family member of SR PMDC series of continuous duty motors initiated by Kollmorgen Pacific Scientific.

The SR3720-3798-2A-56C is a 90Vdc motor with 2.5A current. The continuous duty motor offers ¼ HP power output with the ability to reach the top speed of 1800 RPM. The permanent magnet has been include to replace wound filed design just to make sure that the motor gets lighter for better efficiency. Add TENV enclosure and explosion proof washdown construction for better durability. The PMDC motor features anti-cogging magnets meant for high overcurrent capacity as well as smooth low-speed operation. The H-class insulation has class 220 rating that indicates high resistance against winding temperature up to 150 degree Celsius. The motor features brush springs with field replaceable brushes, as well as factory assigned large bearings to for shaft protection.

The SR3720-3798-2A-56C has been manufactured and assembled as per SCR rated NEMA standards that has gained certifications and acclamations from world-renowned bodies. The motor has NEMA 56C face with removable base. The SR3720-3798-2A-56C model belongs to the family that conforms UL standards, CSA standards and CE standards. Apart from all these certifications, the permanent magnet DC motor comes with the manufacturer’s warranty of two years. In short, SR3720-3798-2A-56C is a powerful low-speed motor perfect for long-lasting operations.

  • SR3720 3798 2A 56C
  • SR372037982A56C
  • SR372O-3798-2A-56C

SR3720-3798-2A-56C Technical Specifications

Product Code: Factory Assigned
Voltage (DC): 90
Enclosure: Factory Assigned
Current (Amps): 2.5
H.P.: 1/4
RPM: 1800
