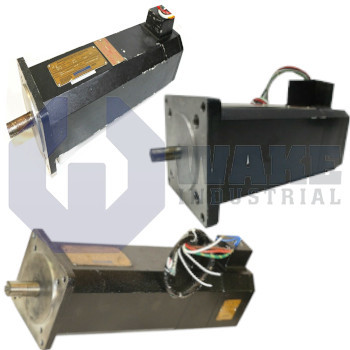

The Kollmorgen EB Explosion Proof Motors series is a family of hazardous-location servo motors built for operation in certified environments, with versions carrying UL or ATEX/IECEx/ETL approvals depending on the model.
The series spans multiple frame sizes and performance classes, from smaller motors with continuous stall torque below 1 N·m to large-frame units above 40 N·m, with variants offered for 115 VAC, 230 VAC, 400 VAC, and 480 VAC systems depending on the EB or EBH family. Across the range, the motors use resolver feedback, standard IP65 protection with optional IP67 sealing, and optional holding brakes, with brake torque increasing by frame size from about 2.3 N·m on smaller models to 48 N·m on larger ones. Mechanical dimensions also scale significantly through the series, with shaft diameters increasing from 11 mm to 32 mm, motor diameters from 70 mm to 190 mm, and motor weights from roughly 2.5 kg to 36 kg, while ambient temperature is consistently specified at 40 °C. Overall, the EB series is intended for hazardous-duty servo applications that require certified explosion-proof construction, sealed motor packaging, resolver-based feedback, and a broad selection of torque, speed, and mechanical sizing options.
