EB-202-B-91-001

  • Rated 4.4 (31 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options
The EB-202-B-91-001 is manufactured by Kollmorgen as part of the EB explosion proof motor series. It features a max rated power of 3.7 kW and a max Tp of 19.9Nm. Including five different frame sizes and max rated of 7000 N.
✓ In-Stock! EB-202-B-91-001

EB-202-B-91-001

  • Rated 4.4 (31 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options
The EB-202-B-91-001 is manufactured by Kollmorgen as part of the EB explosion proof motor series. It features a max rated power of 3.7 kW and a max Tp of 19.9Nm. Including five different frame sizes and max rated of 7000 N.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

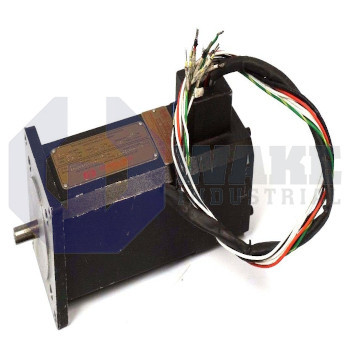

EB-202-B-91-001 is a brushless motor produced by Kollmorgen. It is part of the GOLDLINE series of motors that is ideal for servomotor applications. It features a horsepower of 1.3HP, 3800rpm speed at rated power, and a maximum speed of 3800rpm. The continuous torque at 40 degrees is 1.80lb-ft, while at 25 degrees, it achieves a continuous torque of 1.91lb-ft. It has four poles, weighs 15.0 pounds, and has static friction of 0.06lb-ft. These and other crucial features ensure that you get a top-tier brushless motor that provides high efficiency, dependable operation.

The EB-202-B-91-001 provides an option for NEMA mounting and fail-safe brake to meet specific needs. The motor is explosion-proof and has been tested and proven to withstand an internal explosion without allowing the ignition to reach the outside of the motor frame. It is listed by UL to operate in most hazardous environments, such as Class 1 and Division 1. This listing makes it ideal to use in environments where there are flammable gases or vapor without causing any accidents. It comes in Class H insulation hence can withstand high temperatures without causing a system shutdown.

The construction of the EB-202-B-91-001 brushless motor is compact, which allows it to achieve a high torque to volume ratio. It also comes with an integrated thermostat which regulates and protects the motor against high temperature. You can use metric or NEMA mounting on this brushless motor to meet your needs. The permanent interior magnets allow it to achieve high power and torque density while eliminating problems synonymous with motors that use airgap. Some of the most crucial options available for the EB-202-B-91-001 include multiple connector options, geamotors, and resolver and encoder feedback, among others.

  • EB202B91001
  • EB202-B-91-001
  • EB-202B91001
  • EB 202 B 91 001

EB-202-B-91-001 Technical Specifications

Max BUS (VDC): 320
Max Rated N: 7000
Max Rated Power at Max BUS kW : 3.7
Max Stall Tc Nm: 6.9
Max Tp Nm: 19.9
Weight (lb): 15
