AKM11E-BNMN2-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM11E-BNMN2-00 Is manufactured by Kollmorgen and features a max BUS of 320 and max Tp of 1.46 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .30 Kw.

AKM11E-BNMN2-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM11E-BNMN2-00 Is manufactured by Kollmorgen and features a max BUS of 320 and max Tp of 1.46 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .30 Kw.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM11E-BNMN2-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

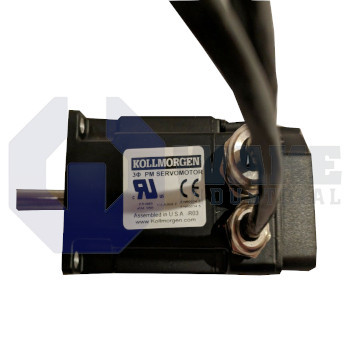

The AKM11E-BNMN2-00 synchronous servomotor is a part of the AKM series of motors from Kollmorgen. The manufacturer has a global presence with its wide range of electrical products. These motors work with SERVOSTAR digital servo amplifiers. The motor has a flange size of 1 corresponding to a size of 40mm. The power connectors of the motor must not be disconnected when it is energized. The device has a maximum mains voltage rating of 230VAC. It has a rotor length of 1 and a winding type of E. The motor is available with a warranty period of one year.

The synchronous motor must not support too much radial load on the shaft to avoid damage. The cylindrical shaft ends of the motor adhere to DIN 748 specifications. The device is intended to be used for drives that are used in high dynamic and stability requirements such as packaging, textile machinery, machine tools and industrial robots. The brushless DC motor features a three-phase winding that is integrated into the stator. The temperature of this winding is kept under control using temperature sensors. The unit has a climatic category of 3K3 according to EN 50178 specifications.

The servomotor comes with a smooth shaft and a 0.5m shielded cable with IP 20 connectors. The flange supports NEMA specifications. The motor makes use of a comcoder with 2048PPR as its feedback. It has a rated speed of 6,000min-1 at 75VDC. The device weighs 0.35kg. The unit has a polyurethane sheathing and polyterephthalate core insulation. The UL Listed leads can be used for trailing and have a lifetime of one million bending cycles. The motor must be assembled in a site that is free of aggressive and conductive materials. The device can be delivered to any address across the world through our transport agents.

  • AKM-11E-BNMN2-00
  • AKM11E-BNMN2-OO

AKM11E-BNMN2-00 Technical Specifications

Frame Size: AKM1
Frame Size:
Max BUS (VDC): 320
Max Rated N: 8000
Max Rated Power at Max BUS: .30 Kw
Max Stall Tc: .409 Nm
Max Tp: 1.46 Nm
Stack Length: 1
