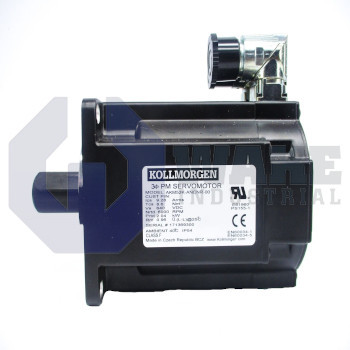

AKM52K-ANCNR-00

Name: AKM52K-ANCNR-00
Brand: Kollmorgen
Price: 401 USD
Availability: InStock
Rating: 4.3 (29 reviews)

Rated 4.3 (29 total ratings)

No Tariffs On US Orders

Straightforward Pricing: No Rush Fees, No Credit Card Fees

Available

Preparing your secure checkout page...

The AKM52K-ANCNR-00 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 38.4 Nm. The AKM series also featured a max rated force of 6000 and max rated power of 3.87 kW.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

Kollmorgen is a manufacturer of industrial motion control equipment. In a short span of time, Kollmorgen has successfully placed itself as a market leader in automation product manufacturing. The main contributing factor to this feat is that in addition to providing the best motion control equipment, Kollmorgen provides complete solution packages for industrial control challenges.

The AKM series features highly efficient servo motors that can serve in a variety of industrial environments. The AKM52K-ANCNR-00 belongs to this series and is ideal for servo applications in metal machining and the woodworking industry. The motor has a very sensitive corrective feedback loop that constantly records the actual speed, torque, and position and compares it against the programmed values. Upon detecting a difference in actual and programmed values, the feedback system activates and adjusts the values instantly. Even a minute error is instantly rectified. This high degree of efficiency is only possible because of the highly sophisticated SERVOSTAR servo amplifiers that work in conjunction with the motor’s inbuilt resolver.

The AKM52K-ANCNR-00 has an IP 65 standard protection that ensures protection against deposits of dust and ingress of water jets. An additional shaft sealing ring can be used that can elevate the protection level to IP 67. With a peak torque of 21.9 Nm and a peak current of 27.8 A, the motor is highly suited for rigorous industrial environments. For the protection of motor windings and avoiding overheating, the winding temperature is constantly monitored with the help of an electrically isolated PTC thermistor. Due to a brushless design, the motor requires minimum maintenance. The bearings of this motor have 20,000 plus hours of mechanical service life. This ensures that the motor has a long service life.

Specs
Revisions
Product Comparison
Similar Ordering Codes
Common Error Codes
Common Troubleshooting Steps

Brake
No brake

Feedback device
Resolver

Flange size
108 mm

Max speed
6000 RPM

Product type
Synchronous motor

Rotor length
2

Shaft
Smooth

Standstill current
9.3 Amps

Standstill torque
8.6 Nm

Weight
5.8 kg

AKM-52K-ANCNR-00
AKM52K-ANCNR-OO

Model	Frame	Continuous stall Nm*	Peak Nm	Max rpm	Key differentiator
AKM51G-ANCNR-00	5 × 84 mm	4.75 Nm	11.7	8 000	High-speed “G” winding, shortest stack
AKM52K-ANCNR-00	5 × 84 mm	8.6 Nm	21.9	6 000	Baseline (K winding, resolver feedback)
AKM52G-ANCNR-00	5 × 84 mm	7.9 Nm	24	8 000	Higher top speed “G” winding
AKM53K-ANCNR-00	5 × 84 mm	11.6 Nm	28	6 000	+35 % torque, same connectors
AKM54K-ANCNR-00	5 × 84 mm	14.4 Nm	32	6 000	Highest torque in AKM5 frame
AKM42E-ANCNR-01	4 × 84 mm	3.4 Nm	15.9	6 000	Lighter AKM4 option if space/weight critical

Kollmorgen code

Drive code	What it means
F219	Control-board EEPROM write failed
F209	Power-board EEPROM read error
F210	Power-board serial-number data corrupt
F230	Power-board EEPROM write failed
F232	Power-board EEPROM invalid data
F501	Bus over-voltage (> HVOV)
F502	Bus under-voltage (< HVUV)
F525	Output over-current
F526	Current-sensor short circuit / wiring reversed
F535	Drive power-board over-temperature (> 85 °C)

Fault / Error Code	What it means	Corrective action
F301 – Motor overheated	The embedded KTY/thermistor in the AKM52K reports a temperature above its safe limit	Improve cabinet airflow, check that the motor is firmly bolted to a heatsinking metal plate, and allow it to cool before re-enabling.
F302 – Overspeed	Actual shaft speed exceeded the user limit (VL.THRESH)	Raise VL.THRESH if the commanded speed is legitimate, or lower the velocity command / gearing so the motor cannot over-rev.
F304 – Motor foldback	Continuous overload: the drive has reduced current to prevent thermal damage	Inspect for jammed or sticking load; reduce move profile aggressiveness or increase acceleration time, then clear the fault.
F305 – Brake open-circuit	The drive cannot pull current through the optional holding brake coil	Verify brake wiring and connector pins; if the motor has no brake set MOTOR.BRAKE=0 (or 100 to disable monitoring) and reboot.
F306 – Brake short-circuit	Brake coil resistance is below the expected value, indicating a short or crushed cable	Check cable for damage or pinched insulation; measure brake coil resistance vs. datasheet, replace brake or repair wiring.
F308 – Bus voltage exceeds motor rating	The DC-bus is higher than the AKM52K’s insulation class permits	Verify mains supply and drive model match the motor; lower bus voltage or fit a motor with the correct voltage suffix.
F417 – Broken wire in primary feedback	Incremental encoder (A/B/Z) amplitude fell, pointing to an open in the feedback cable	Inspect the hybrid cable for cuts or loose crimps; reseat X10, repair or replace the cable, then clear the fault.
F418 – Encoder 5 V supply fault	The drive detected an overload or short on the encoder power rail	Unplug feedback, check for pin-to-pin shorts; if the fault clears, reconnect with power off, else replace the feedback device.
F502 – DC-bus under-voltage	Mains sag or single-phasing has pulled the bus below the safe threshold	Confirm all three phases (or both for 1-φ) are present and sized; look for tripped breakers or loose contactors, then reset.
F525 – Output over-current	Phase current spiked above the drive’s peak limit – possible phase-to-phase short or stalled axis	Check motor cable and connector for shorts, ensure the load is free to move, then power-cycle and re-test with lower torque.
