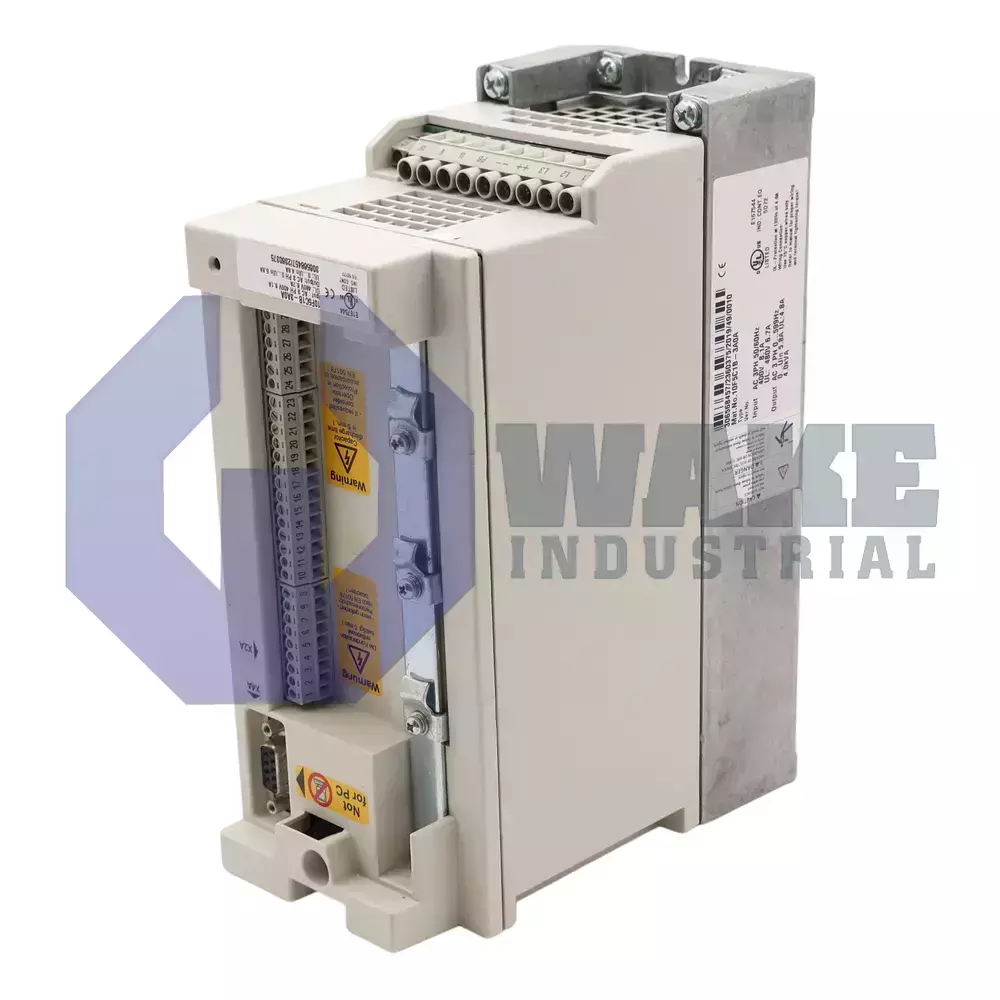

The KEB 10.F5.C1B-3A0A component is part of the F5 Combivert Axis Drive Series and features an enclosure type of IP20. This drive operates with a voltage rating of 3PH 400V and a current max of 12.5 Amps. It also includes field-oriented control options and supports temperatures ranging from -10 to 45°C.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The 10.F5.C1B-3A0A KEB model in the F5 Combivert Axis Drive Series comes with a rating 2.2 kW, with a 3-phase 400 V system as a base. It has a rational and versatile approach to an input current of 5.8 A and a maximum current up to 12.5 A, thereby allowing steadiness during changes in loads. It will have a 8/16 kHz switching frequency, thus the drive is possible to use at any application while maintaining its response times in dynamic environments.

The 10.F5.C1B-3A0A, in terms of reliability and safety, complies with the standards of EN 61800-2 and EN 61800-5-1, therefore making sure of warranty on its performance as well as on its compliance to regulatory. It is also equipped with short circuit and earth fault monitoring, so that chances of electrical faults are avoided during operation, hence providing safety. The IP20 version of the enclosure is suitable for indoor mounting, and operation is possible in controlled surroundings up to -10 to 45°C. Adding to these, its mechanical environment category and B housing category makes it a good choice for secure installations.

This drives offers high-level control options such as sensorless motor management, field-oriented control, and position control. These options make the 10.F5.C1B-3A0A suitable for demanding applications which require high-precision adjustment of motors and also precise positioning. An optional protection against unintended restarting adds an extra layer of safety, stopping unwanted operation in case of a power outage or maintenance. Compliant with EN 61800-3 and EN 61000-6-1…4, on emissions of immunity to interference, this drive will interfere at a minimum to other surrounding equipment and ensure that the smooth integration of the complex system will work.

Specs
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Control option
Position control

Earth fault monitoring
Yes

Emitted interference
EN 61800-3; EN 61000-6-1 to -6-4

Enclosure type
IP20

Housing category
B

Max current (Imax)
12.5 A

Mechanical environment category
C1

Nominal current (In)
5.8 A

Operating temperature range
-10 to 45 °C

Optional feature
Protection against unintended restart

Power rating
2.2 kW

Product standards
EN 61800-2; EN 61800-5-1

Short-circuit monitoring
Yes

Switching frequency
8 / 16 kHz

Voltage rating
400 V, 3-phase

Error Code	What it means on the keypad	Typical root causes	Quick fix / first checks
E.OC	Over-current trip – output current or a ground fault exceeded the drive’s peak limit	• Shorted motor leads• Ground fault in cable• Ramp times too aggressive• Defective contactor or output transistor	1) Megger motor & cable, repair insulation2) Bypass or replace contactor3) Lengthen accel/decel ramps
E.OP	Over-voltage on the DC bus (840 V DC @ 480 V units)	• Regenerative decel without brake resistor• Mains spikes / high line• Brake-chopper or regen unit mis-wired	1) Size & wire braking resistor / regen unit correctly2) Add 3–5 % line reactor3) Verify mains within spec
E.UP	Under-voltage on the DC bus (< 240 V DC @ 480 V units)	• Low or missing phase• Weak transformer / long cable drop• UPS mode not enabled when running on single phase	1) Measure line-to-line voltage & balance2) Inspect input fuses and wiring3) Enable UPS mode or boost supply
E.OS	Overspeed ― actual RPM exceeds limit set from machine data	• Wrong motor name-plate data• Encoder pole-position off• Speed-loop gains badly tuned	1) Correct LF motor parameters2) Re-learn encoder pole position3) Retune speed gains LF.31-33
E.LSF	Load-shunt / charge-relay fault during power-up	• Relay not pulling in (low line, bad coil)• Brake resistor on wrong terminals• Repeated brown-outs	1) Verify coil voltage & wiring2) Check PB/++ resistor wiring & resistance3) Cycle power fully; replace inverter if relay failed
E.Cdd	“Error Calculate Motor Data” – motor auto-tune failed	• Incorrect LF10-17 motor data• Contactor didn’t close• Motor wiring wrong phase order	1) Re-enter name-plate data, rerun learn2) Confirm contactor closes & holds3) Swap phases if rotation incorrect
E.PU	Power-unit (IGBT section) hardware fault	• Internal power stage failure• Noise corrupting control-to-power handshake	1) Reseat ribbon between control & power boards2) Eliminate noise sources; if fault persists send drive for repair
E.EnC1	Incremental encoder channel lost or both signals equal	• Broken A/B/N differential pair• Wrong encoder supply voltage• Missing N channel not jumpered	1) Scope encoder lines, fix cable2) Jumper unused N+ / N- if TTL encoder lacks N3) Match encoder supply (5 V vs 24 V)
E.ENCC	Absolute-encoder interface communication error	• Bad encoder cable or card• Bent pins on interface board	1) Inspect & reseat encoder card2) Replace cable; verify termination
E.EF	External fault input active / speed-following error forced external trip	• X2A.10 external-fault contact closed• LF.57 set to mode 2 without jumper	1) Check external-fault wiring / PLC contact2) Install jumper between ASd output and X2A.10 or change LF.57 setting

Part Number	Rated Power(kW)	Line Voltage Class	Nominal Current In (A)	Max Current Imax (A)
10.F5.C1B-3A0A (reference)	2.2	3 × 400 V	5.8	12.5
07.F5.C1B-3B0A	0.75	3 × 400 V	2.6	5.6
09.F5.C1B-3A0A	1.5	3 × 400 V	4.1	8.9
12.F5.C1B-350A	4	3 × 400 V	9.5	21
09.F5.C1B-2B0A	1.5	3 × 230 V	7	15.1
10.F5.C1B-2A0A	2.2	3 × 230 V	10	21.6

Error code	Plain-language meaning
E.OC	Over-current trip (output or ground fault)
E.OP	DC-bus over-voltage
E.UP	DC-bus under-voltage / phase loss
E.OS	Motor overspeed limit exceeded
E.LSF	Load-shunt/charge relay did not pull in at power-up
E.Cdd	“Calculate Motor Data” auto-tune failed
E.PU	Power-unit (IGBT section) hardware fault
E.EF	External fault input active
E.ENC	Incremental/absolute encoder communication error
E.OH2	Electronic motor-overload protection activated

Frequently Asked Questions about 10.F5.C1B-3A0A:

Q: What is the power rating for the 10.F5.C1B-3A0A model?

A: The power rating for the 10.F5.C1B-3A0A model is 2.2 kW.

Q: What is the current in for the 10.F5.C1B-3A0A model?

A: The current in for the 10.F5.C1B-3A0A model is 5.8 A.

Q: What is the maximum current of the 10.F5.C1B-3A0A model?

A: The maximum current for the 10.F5.C1B-3A0A model is 12.5 A.

Q: What is the enclosure type for the 10.F5.C1B-3A0A model?

A: The enclosure type for the 10.F5.C1B-3A0A model is IP20.

Q: Does the 10.F5.C1B-3A0A model include protection against restart?

A: Yes, the 10.F5.C1B-3A0A model includes protection against unintended restart.

Internal Product Review

‘‘The 10.F5.C1B-3A0A by KEB in the F5 Combivert Axis Drive Series offers a solid and safe solution for applications in dynamic environments. Its protection against unintended restart ensures that it can handle demanding tasks without compromising safety or reliability.’’
