Product Description

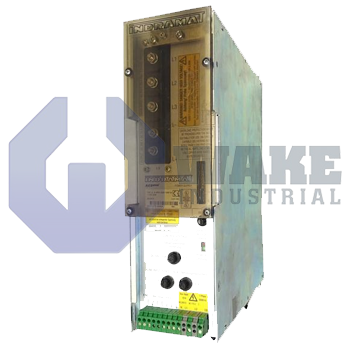

The TVM 2.4-050-220/300-W1/115/220V power supply module offered by Bosch Rexroth meets the power demands pertaining to the AC servo drives by the manufacturer. These servo drives are widely deployed in machine tools. The product comprises 3 x 230VAC +10% -15% line voltage rating. The device features an X14 terminal strip at the bottom for connecting its Ready output and 24V, 15V outputs. It can be utilized with an auxiliary capacitance module that minimizes the energy consumption and heat loss in the enclosure. The unit stores the energy of the drive in a DC bus circuit so that it can be used later for acceleration.

The module shuts down automatically when a problem is encountered during operation. This is because of the ability of the device to monitor a full drive system. The product supports resetting operation using the S2 circular button at times of a bleeder resistor overload. Its dynamic braking function aborts the drive operation when a problem with the drive electronic system or the feedback line system installation is encountered. The integrated rectifier converts the AC line voltage to the appropriate DC bus voltage. This device keeps a check on the connected drives to ensure that their temperature and current ratings are not exceeded.

The product is connected to an AC power input and a DC bus through its X9 connector. Its control voltage fuse features 10A current rating and 24VDC voltage rating. The module monitors the connected drives and provides their signal voltage with a wire-ribbon cable. Its auxiliary capacitance module minimizes the energy consumption as well as heat losses in the enclosure in which it is fitted. The unit assists in the storage of the drive energy and reuses it for acceleration when needed. The TVM 2.4-050-220/300-W1/115/220V module comes with a one-year Wake Industrial warranty and is eligible for global shipping to any address of your choice.
