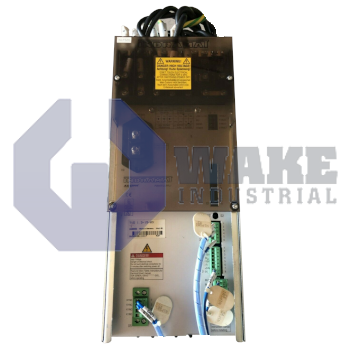

TVD 1.3-15-03-S100

  • Rated 4.3 (8 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The TVD 1.3-15-03-S100 Power Supply is manufactured by Rexroth Indramat Bosch. This power supply is part of the 1st series and is the 3 design. The DC Bus Power for this power supply is 15 and the DC Bus Voltage is 320.

TVD 1.3-15-03-S100

  • Rated 4.3 (8 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Call for Expedited Shipping and Product Condition Options
The TVD 1.3-15-03-S100 Power Supply is manufactured by Rexroth Indramat Bosch. This power supply is part of the 1st series and is the 3 design. The DC Bus Power for this power supply is 15 and the DC Bus Voltage is 320.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Rexroth Indramat is one among the few exceptional motion control products manufacturing companies. As a company that has existed for decades, it has mastered the skill of addressing the major problems facing machine users and designers. The products are carefully designed and manufactured to meet these needs and also rigorously tested to eliminate any chances of faultiness. Whether you are getting a servo drive, a supply module, a permanent magnet motor, servo motors, Indramat power cables or even mains filters, you will get the right product that you can configure to suit your particular needs. You’ll enjoy ultra-efficiency, cost-effectiveness, extreme ruggedness, and long-lasting motion control products.

You should maintain the ideal ambient conditions as well as parameter values for optimum performance.

The TVD 1.3-15-03-S100 power supply module permissible conditions are as stated below. The peak mounting height is 1000 meters above sea level, the ideal relative humidity is 95% while the appropriate absolute humidity is 25g of water/m3 Luft. The ideal transport or storage temperature is -30 to +850C while the allowable ambient temperature with rated data is +5 to +450C. With the derated data, the appropriate ambient temperature stands at +550C.

Now to the technical details, the input voltage stands at 3 x 380 to 480 +/- 10% V, whether you are dealing with the electric or power section. The TVD 1.3-15-03-S100 power supply module’s estimated frequency is 50 to 60 Hz while the DC bus voltage stands at 320 +/-5% V. The maximum DC power (0.3 s) is estimated to be 45 kW, the continuous DC power is 15 kW while the bleeder continuous power stands at 1 kW. With the maximum power without bleeder loss, the power dissipated is 330kw. Finally, the maximum regenerated energy for this unit is 60 Kws and the mass is 11.2kgs.

TVD 1.3-15-03-S100 Documents

  • TVD131503S100
  • TVD 1 3 15 03 S100
  • tvd 1.3-15-03-s100

TVD 1.3-15-03-S100 Technical Specifications

Series: 1
Operating Temperature Range: (+5 to +45) degree centigrade
Design: 3
DC Bus Cont. Power: 15 kW
DC Bus Voltage: 320V
Maximum DC Power (0.3 s) : 45 kW
Bleeder Continuous Power : 1 kW
Power Dissipated : 330 kW
Maximum Regenerated Energy: 60 kWs
Weight: 11.2 kg

Frequently Asked Questions about TVD 1.3-15-03-S100


Q: What is the permissible peak mounting height for the TVD 1.3-15-03-S100 power supply module?

A: The peak mounting height for the TVD 1.3-15-03-S100 is 1000 meters above sea level. This specification ensures optimal performance and safeguards the module from altitude-related issues.

Q: What are the recommended humidity conditions for the TVD 1.3-15-03-S100?

A: The ideal relative humidity is 95% and the appropriate absolute humidity stands at 25 g. Maintaining these conditions ensures the longevity and reliable performance of the module.

Q: What's the suitable transport or storage temperature range for the TVD 1.3-15-03-S100?

A: The module should be transported or stored at temperatures ranging from -30 to +85 C. Adhering to this range protects the device from potential temperature-induced damages.

Q: What is the input voltage specification for the TVD 1.3-15-03-S100 in the electric or power section?

A: The input voltage is specified at 3 x 380 to 480 +/- 10 % V. This range ensures the module operates effectively and safely under varied power conditions.

Q: What is the estimated frequency and DC bus voltage of the TVD 1.3-15-03-S100 power supply module?

A: The module operates at an estimated frequency of 50 to 60 Hz and the DC bus voltage stands at 320 +/-5 % V. These values are crucial for synchronization and optimal performance in varied applications.

Internal Product Review

  • β€˜β€˜The TVD 1.3-15-03-S100 power supply module showcases robust specifications for diverse industrial applications. It provide perfect power to all connected components.’’
