HVR02.2-W025N

  • Rated 4.6 (8 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911190004
  • Stock: In-Stock, Ships Today
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options

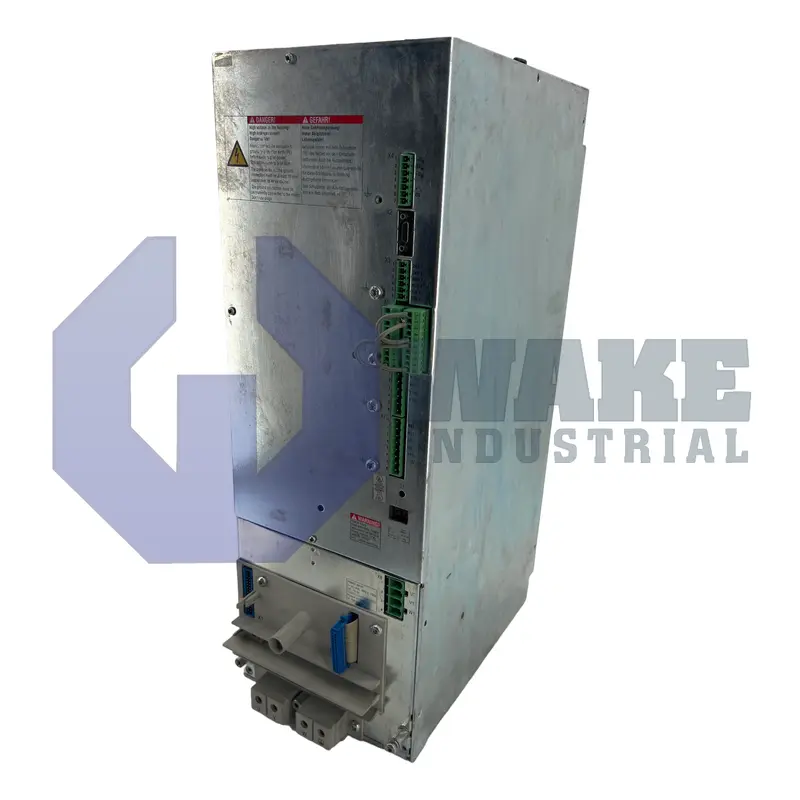

HVR02.2-W025N is a power supply unit. It is designed for the DIAX04 AC drive system. Continuous power output of the supply is 25 kilowatts.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

HVR02.2-W025N

  • Rated 4.6 (8 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911190004
  • Stock: In-Stock, Ships Today
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
HVR02.2-W025N is a power supply unit. It is designed for the DIAX04 AC drive system. Continuous power output of the supply is 25 kilowatts.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a HVR02.2-W025N to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

HVR02.2-W025N is an power supply unit. It is compatible with DIAX04 AC drives from Bosch Rexroth. The power supply unit rectifies 3-phase AC voltage. HVR supply units provide a regulated DC bus voltage for the drive controllers. The power supply has an input rating of 380 to 480 Volts AC at 50 to 60 Hertz. The continuous power output of the unit is 25 kilowatts. The peak power output for 0.3 seconds is 75 kilowatts. Multiple drive controllers can be used with one power supply unit, so that the drive system needs only one mains connection. When the HVR power supply unit runs in generator mode, the energy is regenerated back into the AC mains. If a mains failure or shut down of the power supply unit occurs, the motors are braked by the bleeder in the HVR supply. The drive controllers can be separated from the mains via the internal power contactor on the power supply unit. The supply also provides DC control voltage for the drive controllers. The supply unit is equipped with monitoring functions and communicates with drive controllers through the control bus voltage. Bosch has designed the HVR02.2-W025N for air cooling. The permissible ambient temperature with rated data is 5 to 45 degrees Celsius. The maximum permissible ambient temperature with derated data is 55 degrees Celsius. Protection rating of the unit is IP10. The HVR supply unit contains sensitive electrolytic capacitors. In the case of long-term storage, operators must operate the power supply once a year for a duration of at least 1 hour with power on. The supply unit can handle 0.15 millimeter peak to peak vibration at 10 to 57 Hz frequency.
  • HVR022W025N
  • HVR02 2 W025N
  • hvr02.2-w025n

HVR02.2-W025N Technical Specifications

Product type: Power supply
Peak regenerative power: 75 kilowatts
Manufacturer: Bosch Rexroth
Series: HVR
Rated output: 25 kilowatts
Cooling : Air cooled
Input voltage: 380 to 480 Volts AC
DC bus voltage: 750 Volts DC
Weight: 21 kilograms
Max power loss: 750 Watts

Frequently Asked Questions about HVR02.2-W025N


Q: What is the purpose of the power supply?

A: Purpose of the power supply is to rectify the in AC power and DC output.

Q: What are the basic power losses?

A: The basic power losses are 150 Watts.

Q: What is the internal capacity of the DC bus?

A: The nominal internal capacity of the DC bus is 1.2 millifarads.

Q: What is the input frequency range?

A: The input frequency range is 50 to 60 Hertz.

Q: What is the bleeder peak power?

A: The bleeder peak power is 120 kilowatts.

Internal Product Review

  • ‘‘HVR02.2-W025N is a robust industrial power supply for DIAX04 drive controllers from Bosch Rexroth. ’’
