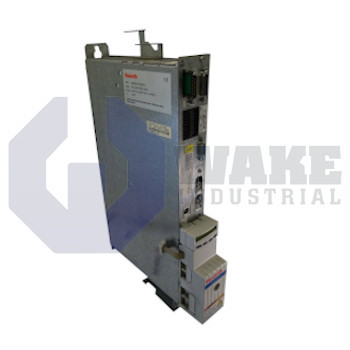

HMS02.1N-W0028-A-07-NNNN

Name: HMS02.1N-W0028-A-07-NNNN
Brand: Bosch Rexroth Indramat
Price: 267 USD
Availability: InStock
Rating: 4.5 (13 reviews)

Rated 4.5 (13 total ratings)

MPN: R911311669

No Tariffs On US Orders

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Preparing your secure checkout page...

The HMS02.1N-W0028-A-07-NNNN by Bosch Rexroth offers a continuous current of 25 A. The controller operates at a 700 V DC nominal voltage, providing efficient motor control for single-axis systems.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The HMS02.1N-W0028-A-07-NNNN is a drive controller developed by Bosch Rexroth Indramat, a renowned name in motion control technologies and automation solutions. This drive controller is part of the IndraDrive HMS series and is designed to manage single-axis systems. The modular structure of this drive controller enhances its usability in various high-precision applications within industrial automation to provide reliable performance in motor control and drive systems.

The HMS02.1N-W0028-A-07-NNNN delivers a continuous current of 25 A and a maximum current of 28 A to make it suitable for demanding motor applications. The drive controller operates on a DC bus nominal voltage of 700 V that ensures efficient power management. The drive controller supports both synchronous and asynchronous three-phase AC motors that require an output voltage of 0 to 500 V. The rated input voltage for the controller is between 254 and 750 V DC with a rated input current of 18.4 A. The device uses an air-cooling method, utilizing an internal blower that provides forced air ventilation at a rate of 17 to 20 m^3/h to maintain its operational efficiency. The IP 20 protection level ensures adequate safeguarding against dust and other particles.

With measurements of 352 mm x 205 mm x 50 mm and a weight of 3.5 kg, the controller is small and easy to carry. Because HMS02.1N-W0028-A-07-NNNN drive controller can work in temperatures between 0 degrees C and 40 degrees C, it can be used effectively in controlled settings. The installation requires a minimum clearance of 80 mm above and below to facilitate proper airflow and avoid overheating. The drive controller is designed with a switching frequency ranging from 4 to 8 kHz to provide reliable control performance. We provide a one-year replacement warranty and global shipping for our products.

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Continuous Current
25 A

Cooling Method
Air cooling (internal blower)

DC Bus Nominal Voltage
700 V DC

Humidity Tolerance
5-95%

Installation Distance
80 mm above and below

Maximum Current
28 A

Operating Temperature Range
0-40 degrees C

Output Voltage
3-phase AC 0-500 V

Protection Class
IP 20

Rated Input Current
18.4 A

Rated Input Voltage
254-750 V DC

Short Circuit Current Rating
42 kA rms

Weight
3.5 kg

HMS021NW0028A07NNNN
HMS02 1N W0028 A 07 NNNN
hms02.1n-w0028-a-07-nnnn

Fault / Error Code	What it Means	Typical Corrective Action
F218	Drive-amplifier heat-sink temperature has exceeded the shut-down limit	Improve cabinet airflow, clean/replace blower, let the unit cool < 45 °C, then clear the fault with Class 1 Reset
F219	Motor thermal sensor signalled an over-temperature event (≈ 155 °C)	Reduce load/duty-cycle, verify motor fan path & thermistor wiring, allow full cool-down before re-enabling
F226	DC-bus under-voltage detected while the drive was enabled	Check mains for brown-outs, be sure Drive Enable drops before DC power disappears; restore supply then reset
F8022	Encoder 1: signals incorrect (wiring / encoder fault)	Inspect & re-seat encoder cable, route away from power lines, replace encoder or interface card if fault repeats
F8025	Over-voltage in the power section (regen energy too high)	Lengthen decel ramps, check braking resistor sizing/connection, clear when DC-bus ≤ 730 V
F8028	Over-current in the power section	Inspect motor cable for shorts, verify current limits & motor data, test IGBT stage if fault persists
F8060	Over-current in power section (fast hardware trip)	Same actions as F8028; additionally check for phase-to-phase shorts and replace damaged devices
F8070	+24 V control-supply under-voltage	Measure 24 V rail at X31, tighten terminals, up-size PSU if sagging under load, then reset the fault
F8091	Power section defective (internal hardware monitoring trip)	Run IndraDrive Diag self-test; if fault re-occurs replace inverter power stage or send for repair
F4001	“Double MST” — two consecutive missing SERCOS master sync telegrams	Check fibre-optic ring, clean/replace damaged leads, match SERCOS cycle times, then restart the network

Drive Controller	Max Current (A)	Continuous Current (A)	Nominal DC-Bus (V)	Cooling	Width × Height × Depth (mm)	Weight (kg)
HMS02.1N-W0028-A-07-NNNN	28	25	700	Internal blower	50 × 440 × 309	3.5
HMS01.1N-W0020-A-07-NNNN	20	12.1	700	Internal blower	50 × 440 × 309	5.3
HMS01.1N-W0036-A-07-NNNN	36	21.3	700	Internal blower	50 × 440 × 309	5.3 (typ.)
HMS01.1N-W0054-A-07-NNNN	54	35	700	Internal blower	75 × 440 × 309	5.9
HMS01.1N-W0070-A-07-NNNN	70	42.4	700	Internal blower	75 × 440 × 309	7.9
HMS01.1N-W0110-A-07-NNNN	110	68.5	700	Internal blower	125 × 440 × 309	11.1

Ordering Codes

HMS02.1N-W0054-A-07-NNNN

HMS02.1N-W0028-A-07-NNNN-AA

HMS02.1N-F0110-A-07-S003

HMS02.1N-W0028-A-07-NNNN

HMS01.1N-W0020-A-07-NNNN

HMS01.1N-W0036-A-07-NNNN

HMS01.1N-W0054-A-07-NNNN

HMS01.1N-W0070-A-07-NNNN

HMS01.1N-W0110-A-07-NNNN

HMS01.1N-W0150-A-07-NNNN

Error Code	What It Means
F218	Drive-amplifier heatsink over-temperature shutdown
F219	Motor over-temperature shutdown (thermistor trip ≈ 155 °C)
F226	DC-bus undervoltage detected while drive is enabled
F8022	Encoder 1 signals incorrect (cable, shielding, or encoder fault)
F8025	DC-bus over-voltage in the power section
F8028	Over-current detected in the power section
F8060	Fast hardware trip: over-current in power section
F8070	+24 V DC control-supply undervoltage
F8091	Power section reported defective (internal hardware monitor)
F4001	“Double MST” failure — drive missed two consecutive Master-Sync-Telegram cycles on SERCOS

Frequently Asked Questions about HMS02.1N-W0028-A-07-NNNN:

Q: What motors are supported by HMS02.1N-W0028-A-07-NNNN?

A: The controller supports three-phase synchronous and asynchronous AC motors. It allows versatile applications in motor-driven systems.

Q: What is the purpose of the 700 V DC bus voltage?

A: The 700 V DC bus ensures efficient power management. It supports high voltage for smoother and more efficient motor operations.

Q: Why does HMS02.1N-W0028-A-07-NNNN use air cooling?

A: It uses air cooling to maintain temperature stability during operation. The integrated blower provides forced ventilation for efficiency.

Q: How compact is the HMS02.1N-W0028-A-07-NNNN controller?

A: The device measures 352 x 205 x 50 mm and weighs 3.5 kg. This compact size simplifies installation and maintenance.

Q: What switching frequency is used in HMS02.1N-W0028-A-07-NNNN?

A: The switching frequency ranges from 4 to 8 kHz. This provides precise motor control for varied industrial applications.

Internal Product Review

‘‘The HMS02.1N-W0028-A-07-NNNN by Bosch Rexroth is a high-performance drive controller, providing 28 A maximum current and a 700 V DC bus voltage. Its internal air cooling ensures consistent operation. Its compact 3.5 kg design supports both synchronous and asynchronous motor applications.’’
