Product Description

The Bosch Rexroth's drive controllers are vital components of the IndraDrive drive system.  They play the role of monitoring and regulating the operations of motors in various machines. Also, these devices are designed to be employed in single and multi-axis drive and control operations. A drive controller consists of a control section plugged into a power section. With variations in configurability, available interfaces, and cycle times, control sections enable drive controllers to perform different application-specific tasks. Drive controllers are commonly used in machine tools, printing and paper processing machines, food and packaging equipment, handling and mounting systems.

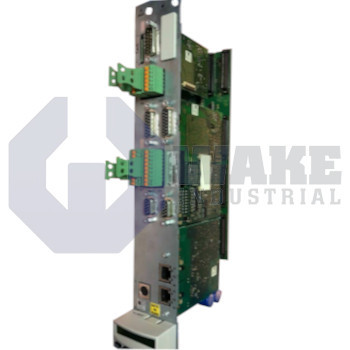

The CDB01.1C-S3-ENS-ENS-NNN-MA1-L2-S-NN-FW is a configurable control section suited for double-axis operations. It has a current control cycle time of 125 µs. Also, it features four combined I/Os, which can be configured to function as a digital input or output. For communication, it uses a SERCOS III interface which is compatible with the RKB0011 and RKB0013 cables.  Also, this interface has eight connection pins built to transmit distinct signals. This control unit has a standard encoder interface that presents a D-sub design and magnetic poles. This interface permits the evaluation of encoder systems with a supply voltage of 12 V.

The switching frequencies available in this device are 2 kHz, 4 kHz, and 8 kHz. With the use of a protective diode, the CDB01.1C-S3-ENS-ENS-NNN-MA1-L2-S-NN-FW is protected against damage from wrong electrical connection and polarity reversal of the supply voltage. In addition, it permits the use of firmware and utilizes the safe torque off safety technology. After every operation, it is recommended to wait for 15 minutes for this device to cool before handling with bare hands. This product can be shipped globally with a one year warranty period from Wake Industrial.
