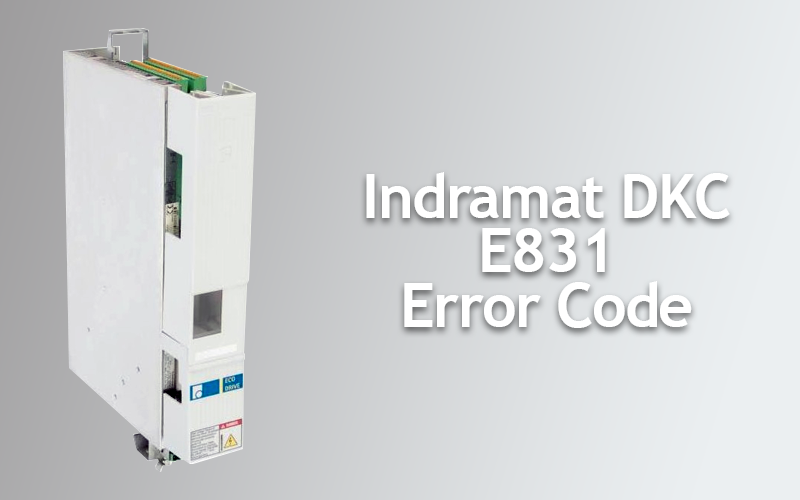

What Is the Indramat E831 Error Code?

Technical Error and Fault Guides

14 September, 2026 | Indramat E831 error code, Bosch Rexroth E831 fault, E831 position limit reached during jog, Indramat DKC error code, EcoDrive E831 warning, DKC jog position limit, Indramat position limit monitor, E829 E830 E831, DKC drive troubleshooting

The Indramat E831 error code means “Position limit reached during jog.” It appears when a referenced or homed axis reaches a configured software position limit while it is being moved with the jog function. The drive stops that jog movement and displays E831 to prevent the axis from traveling farther in the restricted direction.

On controllers with a two-character display, the code may alternate between E8 and 31. Together, these display states form the complete E831 diagnostic.

A qualified technician can often clear the warning by verifying the axis position and jogging the motor safely back into the permitted travel range. If E831 appears at an unexpected location, returns after the axis is inside the permitted range, or accompanies unstable position feedback, the drive configuration and hardware should be evaluated before operation continues.

Need an Indramat drive repaired or replaced? Call Wake Industrial at 1-919-443-0207, email sales@wakeindustrial.com, or request an Indramat drive repair or replacement quote.

Important: This E831 error-code guide is provided by Wake Industrial for general reference purposes. Wake Industrial does not offer troubleshooting assistance by phone or email. Drive inspection, parameter changes, fault clearing, and electrical work must be completed by qualified personnel using the safety procedures and documentation for the exact controller and machine. Users are responsible for exercising independent judgment and appropriate caution when applying this information. Wake Industrial is not liable for equipment damage, personal injury, or other losses resulting from its use.

What Does the Indramat E831 Error Code Mean?

E831 indicates that three operating conditions are present:

  1. The drive is in reference, meaning its position data is referenced to the machine coordinate system.
  2. The software position-limit monitor is active.
  3. A jog command has moved the axis to or beyond a configured position limit.

The drive holds the axis at a standstill and prevents additional jog movement in the restricted direction. A command that moves the axis back into the allowed travel range can be accepted.

E831 Detail

Meaning

Diagnostic text

Position limit reached during jog

Display format

E831 or alternating E8/31

Operating state

Drive is referenced or homed

Trigger

Jog movement reaches a configured software position limit

Drive response

Jog movement stops at the limit

Documented recovery

Jog back into the permitted range or deactivate position-limit monitoring when the authorized machine procedure specifically requires it

The DKC01.1-030-3-FW is an early EcoDrive controller that uses this legacy diagnostic-display format. Its two-character display can present E831 as E8 followed by 31, so both display states should be recorded before power is removed.

How E831 Position-Limit Monitoring Works

An Indramat drive uses position feedback, reference data, and configured travel limits to determine where the axis may move. After a successful homing or reference procedure, the actual position is tied to the machine coordinate system. The drive can then compare actual and commanded positions with its positive and negative software limits.

When an operator jogs a referenced axis toward one of these limits, the drive can position the axis at the limit and stop it there. E831 confirms that the jog boundary has been reached. The warning can appear even when the motor and power stage are otherwise operating normally.

The following parameters are associated with this function in documented EcoDrive firmware:

Parameter

Documented Function

S-0-0049

Positive position limit value

S-0-0050

Negative position limit value

S-0-0055

Position polarity settings, including position-limit monitoring control on applicable firmware

S-0-0057

Position window used as hysteresis for travel-limit behavior

S-0-0403

Position-feedback status; the referenced-state indication is contained here on applicable firmware

E831 often appears during manual setup, maintenance, homing verification, tooling changes, and controlled recovery after a machine stop. The warning can result from normal limit-monitor behavior or from position information that no longer matches the machine.

The Axis Reached Its Intended Jog Limit

The axis is correctly referenced, the limits are correctly configured, and an operator jogged to the end of the permitted software travel range. In this situation, E831 is performing its intended protective function.

The Reference Point or Home Offset Changed

If the axis was rehomed to an incorrect location or a home offset was changed, the drive’s calculated position can reach a software limit before the mechanism reaches its expected physical location.

The Position Limits Are Incorrect

The stored positive or negative position limit may not match the machine’s allowable travel. This can happen after commissioning changes, an incomplete parameter restoration, or the use of a parameter file from another axis.

Position Scaling or Polarity Does Not Match the Machine

Incorrect position scaling, direction polarity, encoder configuration, or mechanical gearing data can cause the drive to interpret movement incorrectly. A replacement controller should not be enabled until these settings have been checked against the machine documentation.

Position Feedback Is Unstable

If the displayed actual position jumps, drifts, or changes in the wrong direction, inspect the feedback system and its wiring before attempting further motion. E831 may be the visible travel-limit warning even though the underlying problem affects the position value used by the monitor.

On an EcoDrive03 unit such as the DKC03.3-040-7-FW, the exact firmware and stored parameter set determine how the position monitor, reference state, and jog function operate together. Keep the controller code and FWA code together in the maintenance record.

How to Clear the Indramat E831 Error Code

1. Stop and Secure the Machine

Remove the motion command and keep personnel clear of the axis. Secure vertical, suspended, gravity-loaded, or mechanically unstable axes according to the machine’s established safety procedure.

Do not work on wiring or remove drive components while the controller is energized. Follow the lockout and discharge instructions for the exact drive whenever electrical inspection is required.

2. Record the Drive and Firmware Information

Write down the complete DKC type code and FWA firmware code. Photograph the display before cycling power. A restart is not the primary documented correction for E831 and may erase useful information about the event.

3. Verify the Actual Position and Reference State

Use the approved machine interface or commissioning software to confirm the actual axis position, referenced status, and configured positive and negative limits. Compare the displayed position with the mechanism’s known location.

If the displayed position is implausible, changes unexpectedly, or moves opposite to the physical axis, stop the recovery and inspect the reference, scaling, polarity, and feedback configuration.

4. Determine the Safe Return Direction

Identify which direction leads away from the active position limit and back into the permitted travel range. Confirm the machine’s positive and negative direction conventions before commanding movement. Motor rotation and machine-axis direction are not always the same.

5. Jog Back Into the Permitted Range

Using the machine’s approved recovery procedure, jog the axis only in the direction that returns it to the allowed range. The drive should reject or stop movement that continues farther into the restricted area.

On documented FGP firmware, E831 clears after jogging in the opposite direction or changing the operating mode. Confirm that the warning has cleared and the actual position is inside the configured limits before resuming automatic operation.

6. Review the Configuration Before Restarting Production

If E831 occurred at the expected endpoint, determine why the command sequence attempted to jog that far. If it occurred at an unexpected point, verify the home reference, offsets, scaling, direction polarity, software limits, and restored parameter file.

Position-limit monitoring should only be deactivated when the authorized machine procedure specifically requires it and equivalent travel protection is in place. Do not disable the monitor simply to force an axis past a restriction.

When Does E831 Require Professional Service?

An E831 warning at the expected software boundary does not automatically indicate a failed drive. Professional evaluation is appropriate when:

  • The actual position is unstable, implausible, or changes in the wrong direction.
  • The controller repeatedly loses its reference state.
  • E831 returns while the axis is verified to be within the configured range.
  • The drive will not retain its parameters.
  • A known-good, firmware-compatible parameter set cannot be restored correctly.
  • Encoder, feedback, memory, or control-electronics diagnostics appear with E831.
  • The controller has visible contamination, burned components, damaged connectors, or other physical damage.

If the warning appears unexpectedly or returns after the position data and limits have been verified, the drive, feedback system, and stored configuration may need professional evaluation.

Wake Industrial provides repair, refurbishment, and replacement options for legacy Bosch Rexroth Indramat DKC controllers. Supplying the complete hardware and firmware information helps identify the correct service or replacement option without adding unnecessary downtime.

Get a quote today. Call Wake Industrial at 1-919-443-0207, email sales@wakeindustrial.com, or request an Indramat drive repair or replacement quote online.
