Bosch Rexroth PC-based control systems combine industrial computing, machine visualization, data processing, and communication interfaces in hardware designed for factory environments. Depending on the configuration, these systems may operate as an HMI, industrial PC, machine controller, or a combined control and visualization platform. Their ability to communicate with drives, I/O modules, PLCs, operator displays, and plant networks makes them an important part of many legacy automation systems.

Need a replacement or repair for a Bosch Rexroth industrial PC? Call Wake Industrial at 1-919-443-0207, email sales@wakeindustrial.com, or submit a quote request using the on page form.

What Is a PC-Based Control System?

A PC-based control system uses industrial computer hardware to perform automation functions that may include operator visualization, production-data processing, recipe management, diagnostics, communication, and machine control. Unlike a standard office computer, an industrial PC is designed for continuous operation around vibration, electrical noise, temperature changes, and other factory conditions.

The exact role of the industrial PC depends on the machine architecture. Some units primarily run HMI and visualization software, while others also execute PLC, motion-control, or CNC functions. The installed operating system, application software, expansion cards, communication interfaces, and connected control hardware determine what the PC can perform.

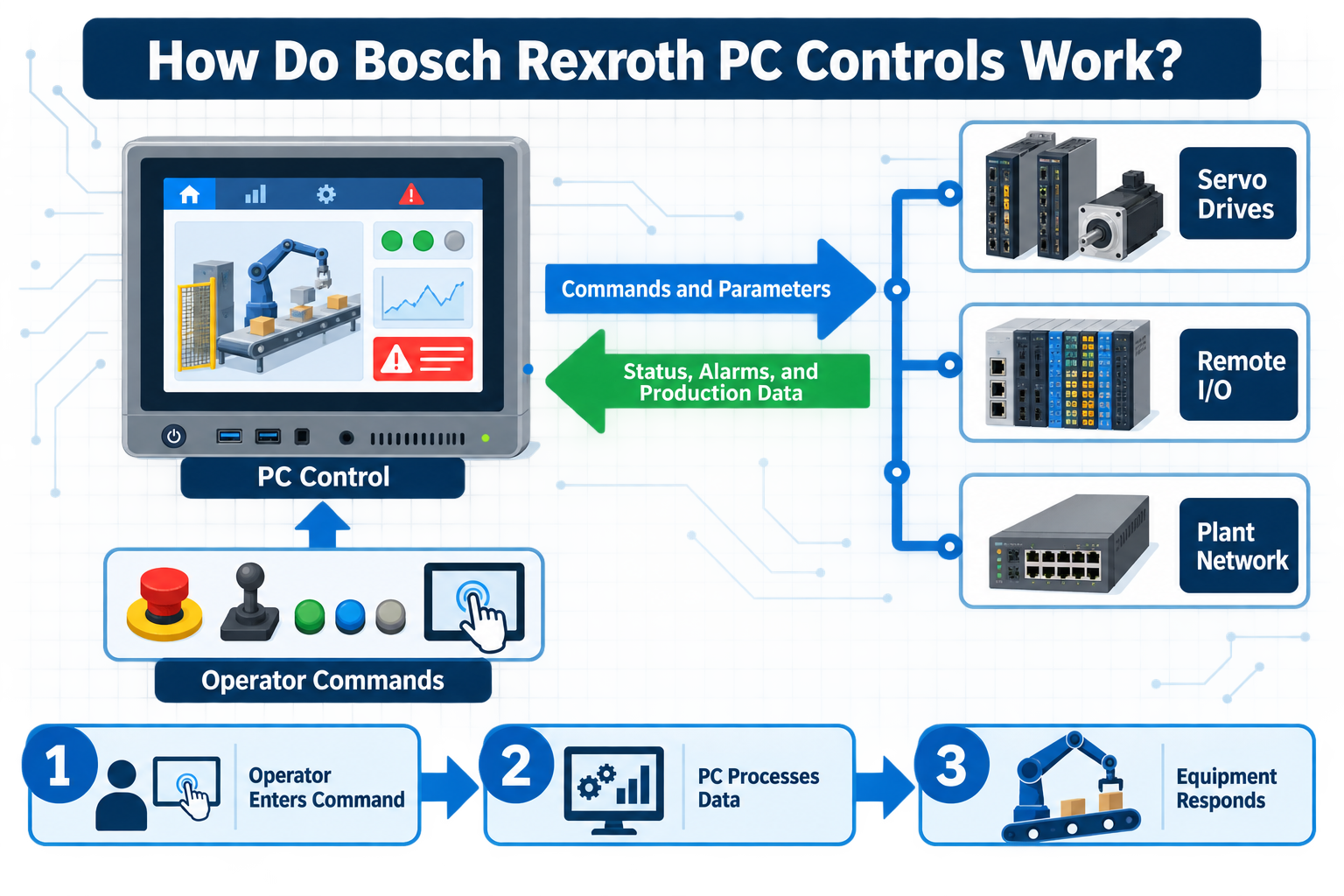

How Do Bosch Rexroth PC Controls Work?

A Rexroth PC control receives operating information from connected PLCs, I/O modules, drives, sensors, or plant networks. Communication may occur through Ethernet, PROFIBUS, serial interfaces, or system-specific display and control connections. The industrial PC processes this data using its installed automation software and presents machine status, alarms, production values, and operating controls through an integrated or remote display.

Operator commands can then be transmitted back to the controller, drives, or distributed I/O. In configurations where the PC performs control functions, it may also execute machine logic, coordinate motion, store parameters, and manage production sequences. The communication cycle allows operating data and machine commands to move continuously between the control system and connected equipment.

Panel PCs, Box PCs, and Embedded Terminals

Bosch Rexroth produced several PC control formats to support different machine layouts. VPP IndraLogic terminals combine computing hardware with an integrated display and operator controls. These units can be installed directly in a machine enclosure, control-cabinet door, or operator console.

VPB box PCs and VSB industrial PCs separate the computer from the operator display. The PC is installed inside the control cabinet and connected to a compatible display or terminal. This arrangement protects the computing hardware while allowing the HMI to be positioned where operators can access it.

VEP embedded terminals provide another integrated option, combining a touchscreen, embedded computer, storage, and industrial communication interfaces in a compact panel-mounted unit. These terminals are commonly used where machine visualization and basic PC functions are required in a single enclosure.

Communication Interfaces in Rexroth PC Controls

Communication capability varies by series and configuration. Common interfaces include Ethernet for control or plant networking, USB for peripheral devices, RS-232 for serial equipment, and VGA or DVI for external displays. Certain configurations also support PROFIBUS DP, dedicated display links, or optional communication cards.

The interface configuration matters when replacing an obsolete PC control. Two units from the same product family may have different display types, power requirements, storage devices, expansion slots, operating systems, or network interfaces.

Bosch Rexroth PC Control Parts

Need one of these Bosch Rexroth PC controls? Call 1-919-443-0207 or email sales@wakeindustrial.com with the full type code to request pricing, availability, or repair options.

Where Are Rexroth PC Controls Used?

Rexroth industrial PCs and operator terminals can be found in machine tools, printing and paper-processing equipment, packaging systems, food-production machinery, assembly lines, material-handling systems, and automated production cells. Their specific responsibilities may include visualization, alarm reporting, parameter storage, recipe selection, production monitoring, motion-control software, or communication between different automation layers.

Panel PCs are useful when the computer and operator interface must occupy one mounting location. Box PCs are better suited to systems where the computer needs to remain inside the cabinet while the display is installed elsewhere. Embedded terminals provide a compact option for machines that require touchscreen operation without a separate full-size control computer.

A failed panel PC, box PC, or embedded terminal can prevent operators from accessing machine controls, alarms, parameters, and production data. Wake Industrial supplies and repairs Bosch Rexroth PC control hardware, including obsolete VSP, VPP, VPB, VSB, and VEP components.

Send Wake Industrial your complete part number and whether you need a repair, replacement, or both. Call 1-919-443-0207, email sales@wakeindustrial.com to get a quote within 15 minutes during business hours.
