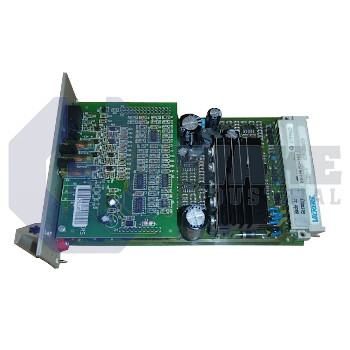

EEA-PAM-5**-B-32 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. The EEA-PAM-535-B-32 Card is For Proportional Valve KFD/TG4V-5 and has a Power Supply Nominal Voltage of 24V DC x 50W.

EEA-PAM-535-B-32

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
EEA-PAM-5**-B-32 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. The EEA-PAM-535-B-32 Card is For Proportional Valve KFD/TG4V-5 and has a Power Supply Nominal Voltage of 24V DC x 50W.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a EEA-PAM-535-B-32 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Vickers is a reliable and reputable manufacturer of motion control aftermarket accessories whose competence has remained consistent for several decades. Armed with skilled personnel, high utilization of technology and integrated systems, Vickers is able to manufacture products that ensure unmatched performance, exceptional durability, and utter ruggedness. Innovators and machine users agree that Vickers is among the few companies that understand fully the needs and challenges in the real world to be able to make high-end, ultra-efficient and cost-effective automation products. Upgrade today to Vicker’s products such as supply modules, amplifiers, drive controllers, servo motors, CNC, Gearing, and power cables among others.

The EEA-PAM-535-B-32 amplifier is a scalable Vickers’ product that should be operated in the right environmental conditions and appropriate parameter values. Care should also be taken during mounting to ensure that the recommended space is left between the unit and other objects and also the installation height observed. Something else, you should make sure that there is no signal loss at pin d2 as this causes polarity and possible erratic motion which affects performance.

The EEA-PAM-535-B-32 amplifier requires an ambient storage or transportation temperature of -25 to +85 0C and the appropriate operating temperature of 0 to 500C. The estimated weight of this unit 0.4kg.

The direct voltage of the EEA-PAM-535-B-32 amplifier is featured by pins b10, z8, b6 and b8 while the z10 pin is seen as the inverting voltage pin. The command signal input’s voltage range stands at +/-10V but the impedance input voltage is estimated to be 47 kΩ. The pin for current is z6 and the nominal current range is 20 mA and the input current (impedance) is 100 Ohms.

  • EEA PAM 535 B 32
  • EEAPAM535B32

EEA-PAM-535-B-32 Technical Specifications

Series: EEA-PAM-5**-B-32
For Proportional Valve: KFD/TG4V-5
Power Supply Nominal Voltage: 24V DC x 50W
Control Supply Output: 15V
Ramp Acceleration Time Range: With pot. set at zero, 0 to +10V equates to a ramp time range of 50ms to 5s
Ramp Deceleration Time Range: With pot. set at max., 0 to -10V equates to a ramp time of 5s to 50 ms
