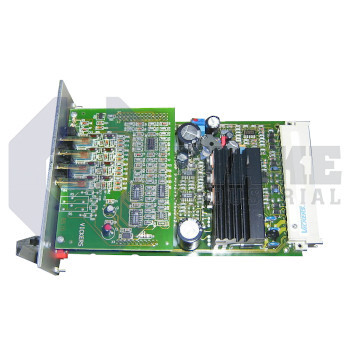

EEA-PAM-5**-B-32 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. The EEA-PAM-513-B-32 Card is For Proportional Valve KCG-3, KCG-6/8, KX(C)G-6/8, H coil and has a Power Supply Nominal Voltage of 24V DC x 50W.

EEA-PAM-513-B-32

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
EEA-PAM-5**-B-32 Power Amplifier Card Series for Proportional Control Valves manufactured by Vickers. The EEA-PAM-513-B-32 Card is For Proportional Valve KCG-3, KCG-6/8, KX(C)G-6/8, H coil and has a Power Supply Nominal Voltage of 24V DC x 50W.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a EEA-PAM-513-B-32 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Finding the ideal brand to source automation components may be a challenging task when there are innumerable options in the market. But if that is the state you are in, you do not have to keep worrying as others like you have tried and tested Vickers aftermarket accessories and proved them to be reliable, long-lasting and exceptionally rugged. Whether supply modules, electric controls, drive controllers, mains filters, servo drives or even servo motors, Vickers won’t disappoint. Another incredible thing is the fact that these products are designed to offer exceptional efficiency, are cost-effective and can be customized to particular application needs.

Vickers EEA-PAM-513-B-32 amplifier is designed for optimal performance. This amplifier has various pins that are made for specific parameter values. The pin z22 for control output supplies is 15 V for the LVDTs only and the output voltage for control at z2 stands at 10 V +/- 1% X 5 mA.

At pin b2 the value is 10V (+/- 1%) x 5 mA. From pk to pk, the ripple for the output voltage control is less than 20 mV.

The command signal input has direct voltage pins of b6, b8, z8, and b10 and its inverting voltage pin is z10. The voltage range of the unit is +/-10V while the input voltage (impedance) is 47 kΩ. At pin z6, the current range is estimated to be 20 mA while its current input (impedance) stands at 100 Ohms. Ensure the signal at d2 is maintained as any loss of signal results in polarity and possible erratic motion which affects performance.

The EEA-PAM-513-B-32 amplifier has a command voltage source, d20 of +/- 10V x 10 mA and its input impedance at voltage-controlled ramp generator estimated at 10 kOhms.

  • EEA PAM 513 B 32
  • EEA-PAM-5l3-B-32
  • EEAPAM513B32

EEA-PAM-513-B-32 Technical Specifications

Series: EEA-PAM-5**-B-32
For Proportional Valve: KCG-3, KCG-6/8, KX(C)G-6/8, H coil
Power Supply Nominal Voltage: 24V DC x 50W
Control Supply Output: 15V
Ramp Acceleration Time Range: With pot. set at zero, 0 to +10V equates to a ramp time range of 50ms to 5s
Ramp Deceleration Time Range: With pot. set at max., 0 to -10V equates to a ramp time of 5s to 50 ms
