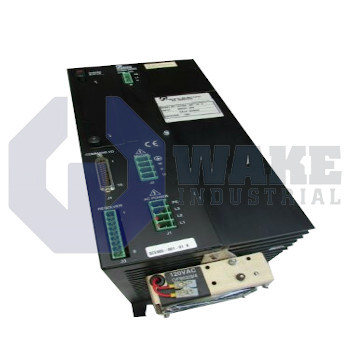

The Pacific Scientific SCE906A2-002-01 is a servo drive from the SCE900 Servo Drives series with a bus power range of 180 to 528 VAC, 3-phase, and a continuous output power of 18 kW at 480 VAC. The drive is forced air cooled, has a peak output current of 33.8 ARMS, and operates with a power stage efficiency of 97 percent. It supports analog or incremental digital command interfaces and allows a maximum motor cable length of 50 meters.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Pacific Scientific manufactures the SCE906A2-002-01 as part of the SCE900 Servo Drives series. This servo drive converts three-phase line power into controlled, variable-frequency output for brushless servo motors used in positioning tables, packaging lines, and other motion systems that require tight velocity and torque regulation. It is suited for closed-loop servo applications where stable current control and fast response are needed during repeated starts, stops, and speed changes. The control section regulates motor behavior while the power section supplies the required output.
The power section accepts a three-phase input of 180–528 VAC, allowing operation on a wide range of global mains voltages without a step-down transformer. During continuous operation the inverter can deliver 22.5 ARMS to the motor windings, and it can support short bursts up to 33.8 ARMS for acceleration or shock loading. This combination supports applications that need stable running torque with extra current available for brief peak demands. A power-stage efficiency of 97% limits heat generation, so more of the incoming energy reaches the motor instead of being lost as heat inside the drive. The internal IGBT bridge switches at 16 kHz, which helps reduce audible noise and supports smoother current control at low speed. Forced-air cooling with a 240 VAC fan removes remaining losses and keeps internal components within a controlled temperature range.
The current ratings support a continuous mechanical output of 18 kW at the nominal 480 VAC bus, while intermittent demands can be met with up to 27 kW during rapid indexing moves. To protect the bus capacitors, the drive can absorb 144 J of regenerated energy and dissipate it through an onboard resistor rated at 250 W over extended operation. Higher braking surges are limited to a 10 percent duty cycle to prevent resistor overheating during repeated deceleration events. The braking circuit is built into the drive, so regenerated energy can be managed internally during normal cyclic motion. This helps the unit handle high-inertia loads without requiring an external braking module in many installations.
Frequently Asked Questions about SCE906A2-002-01:
Q: What is the bus power input range for the SCE906A2-002-01 servo drive?
A: The Pacific Scientific SCE906A2-002-01 servo drive operates with a three-phase bus power input range of 180 to 528 VAC.
Q: What is the continuous output power rating of the SCE906A2-002-01 at 480 VAC?
A: The SCE906A2-002-01 provides a continuous output power of 18 kW when using a 480 VAC supply.
Q: What cooling type is used in the SCE906A2-002-01 servo drive?
A: This servo drive uses forced air cooling to maintain its operating temperature.
Q: What types of command interfaces does the SCE906A2-002-01 support?
A: The SCE906A2-002-01 supports both analog and incremental digital command interfaces for controlling the drive.
Q: What is the maximum motor cable length supported by the SCE906A2-002-01?
A: The maximum allowed motor cable length for the SCE906A2-002-01 is 50 meters.
