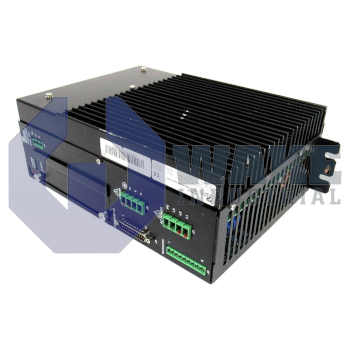

The Pacific Scientific SCE904AN-001-01 is a servo drive in the SCE900 Servo Drives series and weighs 6.6 kilograms. It is convection cooled with no fan and has a continuous current of 10.6 Amps at 25 degrees Celsius, with a peak current of 21.2 Amps. The drive features analog or incremental digital command interface and measures 370 mm in height, 229 mm in depth, and 114 mm in width.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The SCE904AN-001-01 servo drive is built by Pacific Scientific and belongs to the SCE900 Servo Drives series. The unit converts incoming mains energy into variable-frequency, regulated output that matches the instantaneous torque requirements of a brushless servomotor, forming the link between a motion controller and the mechanical axis in industrial automation. It uses a standard configuration, so it suits packaging lines, pick-and-place gantries, and index tables that already follow the manufacturer’s drive-command conventions.
At 25 °C, the drive can deliver a continuous output current of 10.6 A, enabling sustained operation of moderate-frame motors without thermal derating. For short acceleration bursts, it can rise to a peak of 21.2 A, giving extra torque during indexing or rapid directional changes. Heat is removed through convection cooling without a fan, so natural airflow eliminates moving parts and supports simple thermal management. Motion commands arrive through an analog or incremental digital command interface, which supports older analog controllers as well as newer digital PLCs. A panel footprint of only 114 mm in width leaves room for multiple axes inside a standard 300 mm cabinet bay and supports side-by-side mounting.
Cabinet depth integration is aided by a housing that measures 229 mm from the front panel to the mounting plane, and vertical clearance must allow for its 370 mm height, including the heat-sink fins. The aluminum chassis and laminated bus structure keep the total mass to 6.6 kg, which supports straightforward handling during installation while maintaining a solid mechanical structure for machine frames. Classified within the manufacturer’s 900 Series, the drive is supplied as a standard unit with consistent power and cooling characteristics. This layout makes it suitable for multi-axis cabinet arrangements where space, airflow, and predictable electrical performance must all be managed carefully.
Frequently Asked Questions about SCE904AN-001-01:
Q: What is the continuous current rating of the SCE904AN-001-01 at 25°C?
A: The SCE904AN-001-01 servo drive can deliver a continuous current of 10.6 A at 25°C.
Q: What type of command interfaces does the SCE904AN-001-01 support?
A: This model supports both analog and incremental digital command interfaces for flexible operation.
Q: What cooling method does the SCE904AN-001-01 servo drive utilize?
A: The SCE904AN-001-01 is convection cooled and does not use a fan for cooling.
Q: What is the peak current capacity of the SCE904AN-001-01?
A: This servo drive supports a peak current of up to 21.2 A for demanding applications.
Q: To which series does the SCE904AN-001-01 belong?
A: The SCE904AN-001-01 is part of the SCE900 Servo Drives series from Pacific Scientific.
