Home Pacific Scientific SC900 Series SC903-001-01

SC903-001-01

  • Rated 4.6 (24 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships Today
  • Call for Expedited Shipping and Product Condition Options

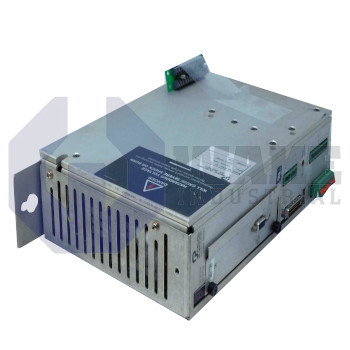

SC900 Series Servo Drive manufactured by Pacific Scientific. This Servo Drive features a Power Level of 7.5 A cont. @ 25 degrees C, 15.0 A pk. along with a Base Servo Software Type of Customization Code.
Request a Quote Request Repair
✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

SC903-001-01

  • Rated 4.6 (24 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships Today
  • Call for Expedited Shipping and Product Condition Options
SC900 Series Servo Drive manufactured by Pacific Scientific. This Servo Drive features a Power Level of 7.5 A cont. @ 25 degrees C, 15.0 A pk. along with a Base Servo Software Type of Customization Code.
Request a Quote Request Repair
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
Surplus
Cash Icon Have a SC903-001-01 to sell?
To Speak to a sales representative for pricing and lead time:
Phone
1-888-551-3082
International
1-919-443-0207
Email
sales@wakeindustrial.com

Product Description

SC903-001-01 is the Single-Axis Brushless Servo Drive which is produced by Pacific Scientific. The device belongs to the 900 series of products. One of the most in use devices, this device is known for its all-digital DSP. This is totally based on control which includes current loops that add to its functionality. It is also available with a unique auto tuning feature. Autotuning feature is one of the advanced options available and is found only in some of the most technically advanced devices. With such advanced features, the product works efficiently and without any kind of disruption or probable errors.

So, what does the part-name mean? It signifies the following:
• SC9: Servo Drive Family Designation
• 0: No Option Card Installed
• 3: 7.5 A Continuous Power at 25°C, 15.0 A Peak
• 001: Standard Unit (No Customization)
• 01: Base Servo Software Type

Just as in case of all devices of this series, the device boasts of a number of features. This is a high-performance device, which works with medium power and single axis servo. These drives work with resolver-equipped brushless 3 phase permanent magnet motors. All devices of this series work well on medium to large volume OEM applications. However, these can be used in case of other end user applications as well.

The device has a modular construction. This means that it is available with a unique user removable option card. All the system and the various application parameters are set perfectly in software which enhances its working. It also features an advanced signature series sinusoidal current control which ensures high performance at all conditions. The product can be used in all environments and is safe for usage

  • SC903 001 01
  • SC90300101
  • SC9O3-OO1-O1
  • SC93-001-01

SC903-001-01 Technical Specifications

Servo Drive Family: SC9
Cooling : Fan Cooled
Command Interface Option Card Designation: No option card installed, No communications/setup interface Analog or Incremental Digital Command
Power Level: 7.5 A cont. @ 25 degrees C, 15.0 A pk.
Accessories and Cooling Options: Factory Assigned
Customization Code: Base Servo Software Type
Output current ripple frequency: 20 kHz
Minimum Motor Inductance : 2.0mH
Maixmum Motor Inductance : 2H
Weight : 3.2 Kg

Frequently Asked Questions about SC903-001-01


Q: How are error handled in SC903-001-01

A: The SC903-001-01 independently detects software, electrical and operational Faults. The fault source is latched, the output stage is disabled, the Fault mappable output function is activated, and the LED status display indicates the appropriate blinking fault code which can be interpreted by the operator.

Q: What is the recommended ambinet conditions for SC903-001-01?

A: The SC903-001-01 should be used at an ambient temperature not higer than 500C and a reletive humidity that does not exceed 90%

Q: Can the SC903-001-01 be used without an option card?

A: The SC903-001-01 can operate with or without an option card. Configuration parameters can be stored in the non volatile memory. SC903-001-01 checks its non-volatile memory for configuration parameters when the option card is not available.

Q: What types of connections are on SC903-001-01 servo drive.

A: The SC903-001-01 is designed with various connections for various purposes. Some of these connections include; The J1 for AC Power, J5 regeneration interface, J2 for Motor power and J3 for the Resolver.

Q: Is the SC903-001-01 environmentaly friendly?

A: The SC903-001-01 is an environmentally friendly device that does not generate a high amount of noise during operation. It contains a lot of materials that can be recycled.

Internal Product Review

  • ‘‘The SC903-001-01 servo drive handles errors gracefully and is very easy to configure. ’’
