Product Description:

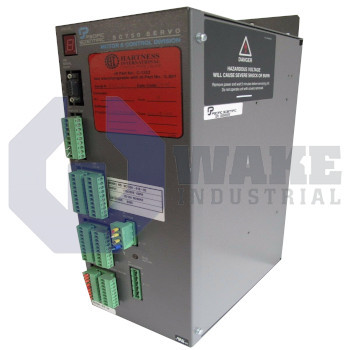

The SC753A-080-02 servo controller is produced by Pacific Scientific within the SC750 Servo Drives series. Designed for closed-loop motion tasks, this programmable digital position controller interprets resolver signals from a matched motor, processes them through its internal microprocessor, and issues timed current commands to maintain target position or speed in industrial automation systems such as pick-and-place axes, feeders, and packaging lines. It integrates with three-phase isolation transformers and standard field wiring, giving machine builders a configurable solution for mid-power servo stages.

During continuous operation, the unit supplies 7.5 A of phase current, providing sustained torque for moderate loads. For rapid acceleration, it tolerates 15 A peak, allowing the drive to overcome static friction without losing position. Heat from the power stage escapes through natural convection, so the unit can operate in cabinets where forced airflow is not available, provided proper spacing is maintained. Under worst-case electrical stress, it dissipates up to 77 Watts, so the panel layout must keep the heat sink within its allowable temperature range. Position data arrives through resolver feedback, which provides absolute angle information and rejects electrical noise over long cables.

At maximum voltage, the amplifier can deliver up to 4500 Watts to the connected servo motor, a rating aligned with a transformer capacity of 3 kVA. The velocity matching option of +22 arcmin refines the resolver converter and reduces position deviation in applications that need finer indexing. Despite these capabilities, the chassis weighs only 7.26 kg, so the drive can mount on DIN rails or panel studs without requiring heavy support hardware. Clearance around the housing should be maintained so natural airflow can sustain full-duty operation.
