SC752A-001-02
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The SC752A-001-02, part of Pacific Scientific's SC750 Servo Drives, is a clip-on solenoid coil with a compact design weighing 120 grams. It operates at 24 VDC with a power rating of 12 W and a current of 0.5 A. The coil features IP65 protection for robust durability.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

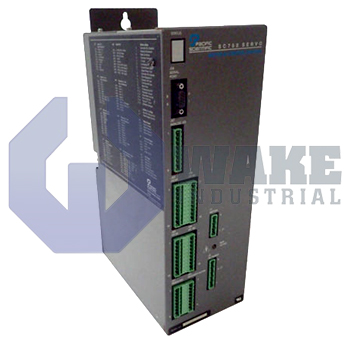

The Pacific Scientific SC752A-001-02 Servo Controller operates on a 230 V AC 3-phase power input and delivers reliable performance for applications requiring precise motion and load handling. The controller includes programmable logic capabilities, input/output flexibility and efficient thermal handling for continuous operation.
This SC752A-001-02 servo controller supports a wide range of programmable inputs and outputs. It provides 12 general purpose inputs, 2 additional general purpose/fast inputs and 2 inputs that support general purpose or counter modes. All inputs are optically isolated and are compatible with 5 to 24 Vdc logic. The fast inputs are capable of capturing signals with a maximum response time of 5 microseconds. On the output side, it includes 11 general purpose outputs and one output supporting general purpose or PWM. These outputs are open collector type, support 5 to 24 Vdc logic and can sink up to 100 mA current. The input current draw from the bus is 4.5 A RMS under standard operation. The controller supports a peak output current of 7.5 A for 5 seconds and a continuous (stall) current of 3.8 A at 50 °C. The shunt regulator is capable of handling peak power of up to 3 kW and supports continuous dissipation of 20 W that offers thermal protection during high load scenarios. The device features built in sourcing input capability and precision signal timing.
The SC752A-001-02 servo controller includes dedicated control inputs for enable, fault reset, inhibit+ and inhibit-. The control outputs include fault signaling, current monitor, commutation signal and two +5 V @ 250 mA max outputs. These features support reliable real time diagnostics and functional control. The analog and digital interfaces allow seamless integration into complex motion systems.
Frequently Asked Questions about SC752A-001-02:
Q: Can the SC752A-001-02 handle sudden peak current demands in high-load operations?
A: Yes, the SC752A-001-02 servo controller supports a peak output current of 7.5 A for up to 5 seconds. It maintains a continuous current of 3.8 A at 50 °C for reliable load handling.
Q: How fast do the input channels on the SC752A-001-02 process signal changes?
A: This model offers two fast inputs capable of responding in just 5 microseconds. These channels are ideal for applications requiring rapid signal capture and accurate control timing.
Q: What kind of thermal protection does the SC752A-001-02 Servo Controller offer under heavy loads?
A: The integrated shunt regulator handles up to 3 kW of peak power. It supports continuous dissipation of 20 W to protect the controller during high thermal stress.
Q: Are the I/O signals on the SC752A-001-02 isolated for industrial environments?
A: Yes, all inputs are optically isolated and support 5 to 24 Vdc logic levels. This enhances noise immunity and ensures safe integration into industrial systems.
Q: Does the Pacific Scientific SC752A-001-02 offer diagnostic or feedback outputs?
A: It includes outputs for fault signaling, current monitoring, and commutation signals. Two +5 V outputs at 250 mA max provide additional system-level feedback and control flexibility.
