Product Description:

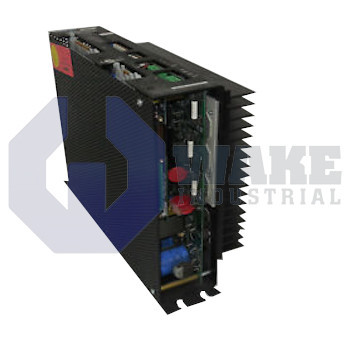

Pacific Scientific's SC453-004-15 belongs to the SC450 Brushless Servo Controllers series and functions as a closed-loop servo controller for industrial motion platforms. By combining power electronics with internal logic, the unit commands brushless motors to precise shaft angles and linear indexes. This allows it to serve as a positioning element in automated assembly, packaging, and inspection cells. Closed-loop operation also helps the axis correct position error during repeated moves and speed changes.

The controller's core function block is a programmable digital position controller that interprets resolver feedback and issues pulse-width-modulated drive signals. It can deliver a continuous armature current of 7.5 A from 115 VAC or 230 VAC lines, while transient loads up to 15.0 A are supplied for acceleration or disturbance rejection. This arrangement lets the controller respond quickly to changes in load and commanded motion. Power devices switch at 15 kHz, which reduces audible noise and improves current regulation. Closed-loop accuracy reaches 15 arcmin, so repetitive indexing stays within that mechanical window. The position register is scalable from zero to 100 million steps for long indexing moves.

A resolution of 4096 steps per rev supports fine interpolation when multi-turn moves span several quadrants. With a peak output of 4500 W on a 230 VAC bus, the controller can drive medium-frame servomotors without external boosters. Installation weight is only 5.0 kg, which helps in panel layouts where space and load allowances are limited. Thermal design permits continuous operation from 0 to 50 °C, and storage temperatures can drop to -55 °C when the unit is not powered. Resolver-based feedback supports stable position control across varied machine cycles without recalibration.
