Product Description:

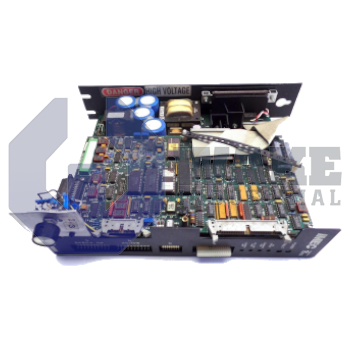

The SC452-035 is a programmable digital position controller manufactured by Pacific Scientific as part of the SC450 Brushless Servo Controllers series. Classified in the servo controller product family, it supplies closed-loop drive power to brushless servo motors in industrial automation equipment. By processing resolver feedback internally, the unit issues commanded motion profiles that position mechanical axes to set coordinates within a machine cell.

During continuous operation on a 115 VAC supply, the controller delivers a steady output of 4.2 A, whereas running from 230 VAC it maintains 3.5 A. These ratings indicate the sustained current available to the motor windings for holding load and executing long moves without thermal derating. For rapid accelerations, the current can surge to 7.0 A, giving additional torque for overcoming inertia or friction. When powered from 230 VAC, the corresponding peak electrical power reaches 2000 W, a limit that must be considered when sizing fuses and cabling. Inside the power stage, a switching frequency of 20 kHz shapes the ripple on the three-phase output. This high frequency reduces audible noise and smooths current to the motor, helping to keep position error low.

Position fidelity is established by a resolution of 4096 steps per rev, allowing the command generator to subdivide each mechanical revolution into fine increments before the resolver is interpolated. Within that structure, the controller supports a total motion span of 0 to +100,000,000 steps, enabling extended linear travel or multi-turn rotary indexing without resetting the counter. Under these conditions, the closed loop typically holds the axis within 15 arcmin of the commanded angle, a tolerance suitable for medium-precision assembly and conveying systems. All functionality is specified for ambient temperatures between 0 to 50 °C, so cabinet airflow must keep the electronics within this range during continuous duty.
