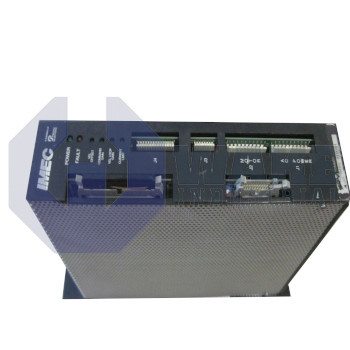

SC452-010-01 Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
45 Seconds
The Pacific Scientific SC452-010-01 is a programmable digital position controller from the SC450 Brushless Servo Controllers series. It offers a continuous current of 4.2 A at 115 VAC and 3.5 A at 230 VAC, with a peak output power of 2000 W at 230 VAC. The controller supports resolver feedback and provides position control resolution of 4096 steps per revolution.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The SC452-010-01 is a brushless servo controller produced by Pacific Scientific for the SC450 Brushless Servo Controllers series. It serves as a programmable digital position controller that translates motion commands from a PLC into phase-correct stator currents for a connected motor, enabling accurate axis positioning in assembly cells, conveyors, or packaging lines. By monitoring resolver feedback and modulating its power stage, the device maintains commanded positions and velocities without external motion modules.
This controller accepts resolver feedback for closed-loop operation. On a 115 VAC supply, it delivers a continuous output of 4.2 A, while on a 230 VAC line the continuous rating is 3.5 A. For rapid acceleration or short overloads, it can supply a peak current of 7.0 A, and when operated from 230 VAC the peak mechanical output reaches 2000 W. The power stage is pulse-width modulated at 20 kHz, a switching frequency selected to limit audible noise while keeping switching losses manageable. The allowed ambient temperature range is 0 °C to 50 °C, permitting installation in standard control cabinets without auxiliary cooling.
The position loop provides a resolution of 4096 steps per rev and holds commanded points within 15 arcmin of error. Motion programs can address any position between 0 to +100,000,000 steps, covering extended linear or rotary axes without range overflows. The enclosure weighs 2.7 kg, which helps reduce panel load during installation. Long-term storage is supported between -55 °C and 70 °C, allowing spare units to be kept in storage without climate-controlled facilities. These operating values suit general-purpose industrial automation where accurate closed-loop positioning is required.
Frequently Asked Questions about SC452-010-01:
Q: What type of feedback does the SC452-010-01 servo controller utilize?
A: The SC452-010-01 provides resolver feedback for precision position detection.
Q: What is the peak output power of the SC452-010-01 with 230 VAC supply?
A: This model supports a peak output power of 2000 W when operating at 230 VAC.
Q: What is the position control resolution offered by the SC452-010-01?
A: Position control resolution on the SC452-010-01 is 4096 steps per revolution.
Q: What is the continuous current rating for the SC452-010-01 at 115 VAC?
A: The SC452-010-01 can output a continuous current of 4.2 A at 115 VAC.
Q: What is the operating temperature range for the SC452-010-01?
A: This controller operates within an ambient temperature range of 0 to 50°C.
