SC403-002 Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Pacific Scientific SC403-002 is part of the SC400 Servo Drives series and supports input voltages of 115 or 230 VAC for either single or three phase operation. It delivers continuous output current of 7.5 Amps and has continuous power ratings of 1575 Watts for single phase and 2250 Watts for three phase operation at 230V. The SC403-002 also offers peak output current of 15 Amps and peak output power up to 4500 Watts at 230V.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

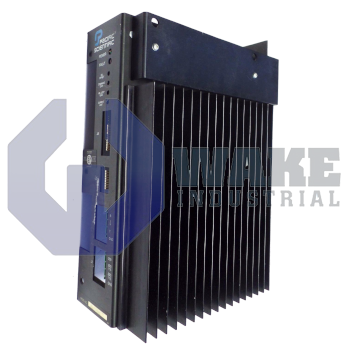

The SC403-002 servo drive is produced by Pacific Scientific as part of the SC400 Servo Drives series. It is intended for closed-loop control of brushless servomotors used in positioning, material handling, and general automation axes. By supplying controlled current and voltage to the motor windings, the unit converts low-level motion commands from a motion controller into precise torque and speed, aligning the motor’s electromechanical output with the requirements of the machine cycle.
The drive has a continuous current rating of 7.5 A, making it suitable for medium-torque loads that require steady output without thermal derating. When connected to a three-phase 230 VAC supply, it can deliver continuous power of 2250 W, while the internal DC bus reaches 320 VDC after rectification and filtering to support rapid motor acceleration. Input can be sourced from either 115 VAC or 230 VAC mains, and the 115/230 VAC range simplifies installation in different facilities. A current-loop bandwidth of 3 kHz allows the servo amplifier to respond quickly to error signals and maintain tight torque regulation during fast trajectory changes.
For transient events such as rapid indexing, the amplifier supplies a peak current of 15 A, and its energy storage and switching devices support a peak mechanical power output of 4500 W on a 230 VAC line. The universal input frequency window of 47-63 Hz allows the unit to operate from either utility or generator sources without additional filtering. Wiring flexibility is supported because the control accepts single-phase or three-phase input, enabling both laboratory setups and production equipment. A differential velocity command range of ±10 V links directly to most motion controllers and provides an analog interface for speed-mode applications without extra scaling hardware.
Frequently Asked Questions about SC403-002:
Q: What continuous output current can the SC403-002 provide?
A: The SC403-002 servo drive can deliver a continuous output current of 7.5 A during sustained operation.
Q: What input voltages and phases does the SC403-002 accept?
A: This model supports both single-phase and three-phase AC input, compatible with 115 or 230 VAC power sources.
Q: What is the current loop bandwidth of the SC403-002 servo drive?
A: The SC403-002 features a current loop bandwidth of 3 kHz for responsive servo performance.
Q: How much continuous power output does the SC403-002 supply on 230V three-phase input?
A: At 230V and three-phase power, the SC403-002 provides 2250 W of continuous power output.
Q: What is the peak output current rating of the SC403-002 servo drive?
A: This servo drive is capable of reaching a peak output current of 15 A for temporary demanding loads.
