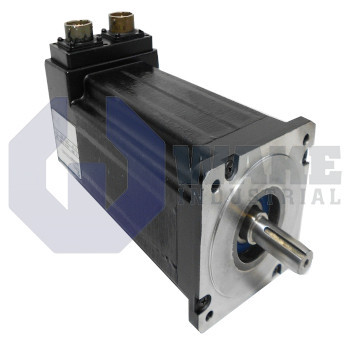

The Pacific Scientific S33ANAH-RNVE-00 is a 6-pole Neodymium magnet brushless servo motor with a continuous stall torque of 5.3 Nm and a peak torque of 15.3 Nm. Part of the S Brushless Motors series, it uses a size 21 frameless resolver as its primary feedback device and is built with a high voltage construction and NEMA 34 frame size. The motor weighs 6.5 kg and features a 24V DC holding brake as well as Interconnectron connectors for termination.
Internal Product Review
The S33ANAH-RNVE-00 is a 6-pole neodymium magnet brushless servo motor with 5.3 Nm continuous stall torque and 15.3 Nm peak torque. The size 21 frameless resolver and 24V dc brake support accurate motion feedback and secure axis holding, a strong combination for demanding servo applications.
