R86GEAA-R2-NS-NV-00 Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.

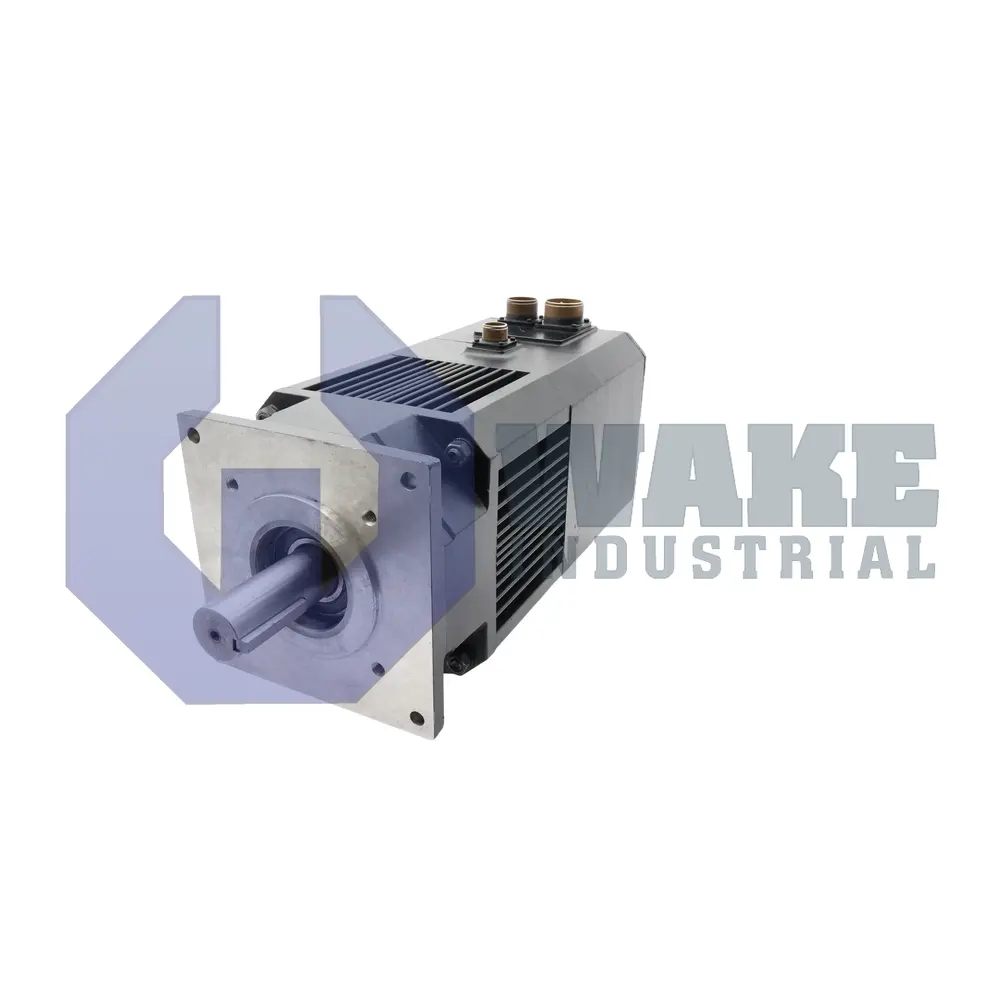

The Pacific Scientific R86GEAA-R2-NS-NV-00 is a servo motor from the R Servomotors series and offers a continuous stall torque of 32.7 Nm with a peak torque of 66.6 Nm. It features a 7.5 inch square frame size, a rated speed of 2500 rpm, and uses rare earth samarium cobalt magnets. The motor includes a 24V DC holding brake, a frameless resolver for primary feedback, and a 6 inch stack length.
Internal Product Review
The R86GEAA-R2-NS-NV-00 is a Pacific Scientific servo motor rated for 2500 RPM with 32.7 Nm continuous stall torque. Peak torque of 66.6 Nm and a frameless resolver primary feedback package support strong dynamic response and dependable position control. A 24 Vdc holding brake and samarium cobalt magnet construction make the motor a strong choice for demanding servo applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The R86GEAA-R2-NS-NV-00 is a servo motor developed by Pacific Scientific for the R Servomotors series. As a rotary actuator, it converts drive current into controlled mechanical motion for coordinated positioning or velocity control in automated machinery and material-handling cells. The combination of electromagnetic torque production and built-in feedback makes this motor suitable for closed-loop operation with matched drives and controllers.
At stall, the motor can deliver 32.7 Nm continuously, providing a clear baseline for static load support under rated cooling. Its 7.5-inch square frame matches standard NEMA mounting patterns used in many industrial installations. A 24 V dc brake is integrated so the shaft can be held when power is removed, which is useful on vertical axes. Rotor inertia is 6.57 × 10⁻³ kg·m², which affects acceleration response when the motor is coupled to reflected load inertia. The motor can reach a peak output of 66.6 Nm during brief transients, permitting rapid indexing during short-duty events. Its rated base speed is 2500 rpm, which fits common gearbox ratios and drive voltage ranges. Primary motion feedback comes from a size 21 transmitter-type resolver, allowing the drive to monitor rotor position during operation.
A rare-earth magnetic circuit that uses samarium cobalt helps maintain flux density over temperature changes while keeping the motor compact. The stack length measures 6 inches, providing the active axial iron needed for the stated torque output without increasing motor width. Installation follows the English mounting convention, so bolt patterns and shaft geometry use inch-based dimensions. The housing style is standard for the series, and the motor has no shaft seal, so the machine must provide external protection against fluid ingress. No secondary feedback channel is fitted, and a standard winding works with the resolver interface for typical three-phase drive operation in this frame class.
