R45GCAA-R2-NS-NV-00
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Pacific Scientific R45GCAA-R2-NS-NV-00 servo motor is part of the R Servomotors series and features an RJ45 connector type. This motor is shielded, has an IP67 ingress protection rating, and includes copper alloy contacts plated with gold. It operates with a current rating of 1.5A.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

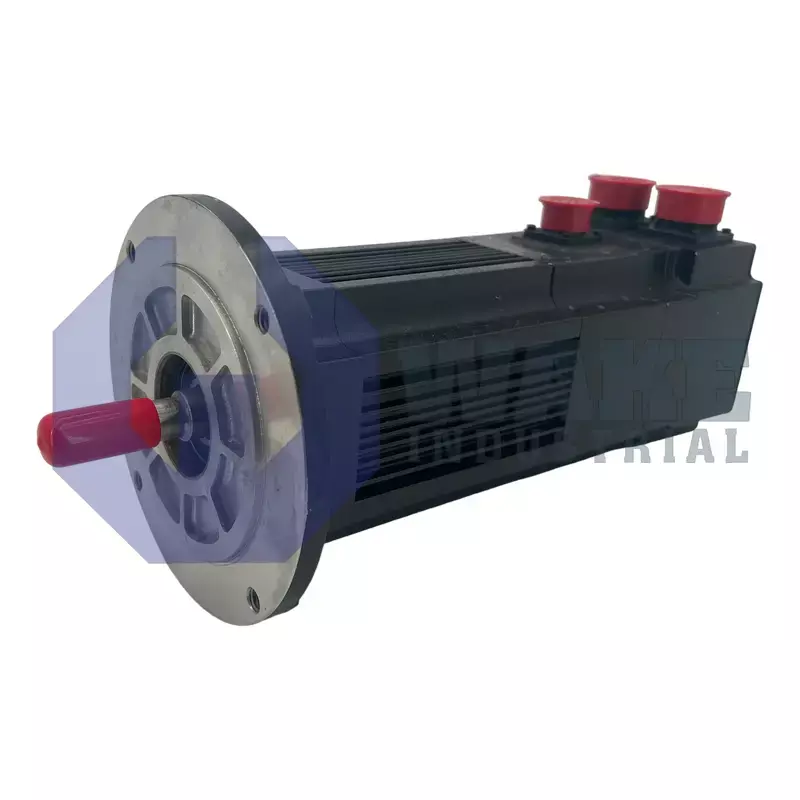

The Pacific Scientific’s R45GCAA-R2-NS-NV-00 servo motor is designed for motion control in automation systems. It comes with a NEMA 56 C face for standard mounting compatibility. This motor is equipped with an electric brake that possess 8.1 Nm of static holding torque and an inertia of 0.000056 kg·m². The brake system utilizes 0.22 A of current from a 24 V supply and weighs 4 lbs.
The R45GCAA-R2-NS-NV-00 motor features a turn effect constant of 0.95 Nm/A and 128 V/Krpm of emf constant. It uses a continuous current of 6.7 A and delivers a peak torque of 22.5 Nm, while the current draw reaches up to a value of 53 A. The motor has a resistance of value 3.2 Ohms at 293.15K and it exceeds to 4.8 Ohms at 100K, these values provide a stable functionality in various operating conditions. It delivers a steady torque of 5.4 Nm and for smooth acceleration/deceleration, it has a moment of inertia equal to 0.00029 kg·m². The R45GCAA motor is a powerful 20 lbs motor that is configured to have 3.7 minutes of time constant for thermal dissipation and its heat factor stands at 0.61 °C/W, that helps to attain self-cooling naturally during long duty cycles. It utilizes an open size 21 resolver feedback system to provide real-time position and velocity monitoring, with no secondary feedback attached.
The R45GCAA-R2-NS-NV-00 motor can be used in a wide variety of industries such as machine tools, press feed, textile machines, packaging machines and robotics. It does not have a pre-installed shaft seal to provide maximum protection level and will only be applicable in places where there is no dust or water splashes. The R45GCAA motor offers a line-to-line inductance of 53 mH.
Frequently Asked Questions about R45GCAA-R2-NS-NV-00:
Q: What does the 8.1 Nm static holding torque refer to in the R45GCAA-R2-NS-NV-00?
A: The 8.1 Nm static holding torque of the Pacific Scientific R45GCAA-R2-NS-NV-00 ensures the motor can hold its position under load, making it ideal for applications requiring precise static positioning.
Q: What is the significance of the 0.29 x 10^-3 kg-m² moment of inertia in the R45GCAA-R2-NS-NV-00 motor?
A: The low moment of inertia enables smooth acceleration and deceleration, improving system responsiveness and precision for dynamic applications like robotics.
Q: How does the 0.95 Nm/A turn effect constant benefit the R45GCAA-R2-NS-NV-00 motor's performance?
A: A turn effect constant of 0.95 Nm/A ensures high torque per ampere, providing more efficient power usage and better control in high-speed operations.
Q: What is the impact of the 53 mH line-to-line inductance in the R45GCAA motor?
A: The 53 mH line-to-line inductance enhances the motor's ability to resist voltage spikes and reduces electromagnetic interference, improving its longevity and efficiency.
Q: How does the open size 21 resolver feedback system in the R45GCAA-R2-NS-NV-00 enhance control?
A: This resolver feedback system provides real-time position and velocity monitoring, offering high precision in dynamic motion control without the need for additional secondary feedback systems.
