N32HCLG-LNK-NS-01 Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
3 Seconds

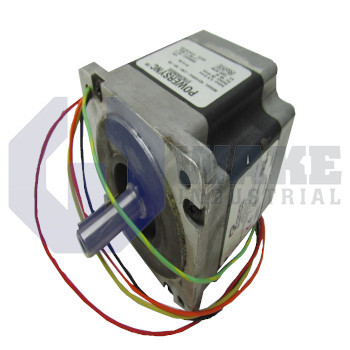

The Pacific Scientific N32HCLG-LNK-NS-01 is a stepper motor from the POWERPAC N Stepper Motors series, featuring a NEMA 34 heavy-duty mounting and a laminated rotor design. It has a holding torque of 8.6 Nm, a 3.38-inch square frame, and a step angle of 1.8 degrees with 200 full steps per revolution. The motor is built with a single straight key shaft, a shaft seal, and comes with a system MS connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The N32HCLG-LNK-NS-01 is a stepper motor manufactured by Pacific Scientific and supplied as a member of the POWERPAC N Stepper Motors series. It translates pulse commands from a compatible drive into precise incremental motion, allowing conveyors, index tables, and packaging stations to position loads without feedback sensors. The product is suited to applications where open-loop control is acceptable and a fixed number of shaft steps can be related directly to machine movement. This operating method keeps motion predictable in equipment that uses repeatable indexing and controlled start-stop sequences.
This motor produces 8.6 Nm of holding torque and uses a laminated rotor in a standard housing construction. A full revolution is divided into 200 steps, so each command advances the shaft by the 1.8° step angle, while positional deviation remains within the stated step accuracy. The winding is the standard type and terminates in a 4-lead series arrangement that supports bipolar drive modes. Motor length is kept to 133 mm, and the motor uses a single shaft with a straight key and a shaft seal. Because no feedback device is present, position verification must be handled by the host controller. The insulation system is rated for up to 340 Vdc, which supports the higher DC bus voltages used in many modern stepper drive systems.
The housing follows the NEMA 34 frame size and measures 3.38 inches on each side, giving the motor a square mounting face with adequate room for its magnetic structure. The code identifies the motor as 2 stacks, which corresponds to the internal stack arrangement used for this build. Power and signal conductors are routed through a System MS connector, providing a dedicated connection point at the motor body. Overall dielectric integrity is supported by an insulation resistance of 100 Megohms. The heavy NEMA pilot helps align the motor on the machine face, and the straight-through rotor layout transfers torque directly to the driven load.
Frequently Asked Questions about N32HCLG-LNK-NS-01:
Q: What connection style does the N32HCLG-LNK-NS-01 stepper motor utilize?
A: The N32HCLG-LNK-NS-01 uses a System MS connector for its electrical connection.
Q: What is the holding torque of the N32HCLG-LNK-NS-01?
A: This model has a holding torque of 8.6 Nm for delivering substantial mechanical force.
Q: What are the frame dimensions and type of the N32HCLG-LNK-NS-01 stepper motor?
A: The frame of the N32HCLG-LNK-NS-01 measures 3.38 inches square and conforms to NEMA 34 standards.
Q: What is the step angle and steps per revolution for the N32HCLG-LNK-NS-01?
A: The N32HCLG-LNK-NS-01 has a step angle of 1.8° with a full-step count of 200 per revolution.
Q: What type of shaft and sealing does the N32HCLG-LNK-NS-01 feature?
A: This stepper motor is equipped with a single straight key shaft that includes a shaft seal.
