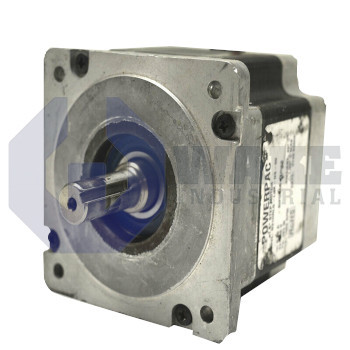

The Pacific Scientific N31HRLG-LNK-NS-00 is a stepper motor from the POWERPAC N Stepper Motors series, featuring a NEMA 34 frame and a 3.38 inch square body with a standard laminated rotor design. This motor delivers a holding torque of 4.6 Nm, has a step angle of 1.8 degrees with step accuracy of ±3%, and comes with a 4 lead series connection. The design includes a single straight key shaft, standard construction, and a heavy duty NEMA mounting type.
Internal Product Review
The N31HRLG-LNK-NS-00 is a Pacific Scientific stepper motor with a NEMA 34 frame and 200 full steps per revolution. Standard construction and a 4 lead series configuration support straightforward integration in motion systems. Holding torque of 4.6 Nm and step accuracy of ±3% make the motor a strong choice for dependable positioning.
