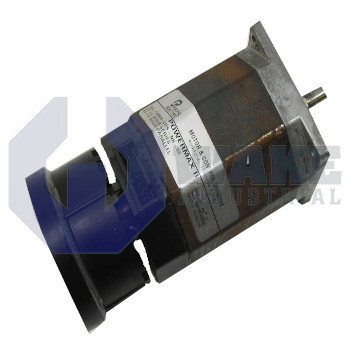

The P22NRXA-LDS-NS-02 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 6.6 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of .42Nm and a detent torque of .018 Nm.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Pacific Scientific – a renown company for utilizing innovation and high-end technology to make step motors. With top-notch scientific know-how and a variety of technical skills, Pacific Scientific has been able to earn an enviable position in the automation and manufacturing industry.  The company strives to make step motors that suit and meet customers’ specifications and unique needs. The P22NRXA-LDS-NS-02 step motor is of high-quality with a highly dependable operation. It has been specially designed with co-engineering modifications for the distinct consumer needs.

The P22NRXA-LDS-NS-02 motor estimated weight is about  1.13 kg. - 2.5kg. The motor has 2 rotor stacks and operates in a series arrangement. High acceleration rates result from the use of low rotor inertia and high rotor inertia result in lower acceleration rates. The rotor inertia of the P22NRXA-LDS-NS-02 step motor is 0.025 to 0.0036 to kgm 2 X 10 -3.

 The motor’s holding torque range is about 1.39 Nm – 197Nm and the detent torque is 0.049Nm up to 7 Nm. The peak rated current stands at 3.3A and a level above this will demagnetize the motor and halt the operation. The thermal resistance is measured while the P22NRXA-LDS-NS-02 motor remains unmounted and its value is 4.5 0 C /watt while the phase resistance is 0.8 Ohms to 4 Ohms. Further, the windings value is a minimum temperature of 40 0 C and a peak temperature of 130 0 C when no heat sink is used and the air remains calm as the motor will be unmounted. This is made possible when you apply the rated current value.

Finally, you will need an impedance bridge to measure the small signals of the P22NRXA-LDS-NS-02 motor at a temperature of 25 0 C.

  • P22 NRXA LDS NS 02
  • P22-NRXA-LDS-NS-02
  • P22NRXA LDS NS 02
  • P22NRXA-LDS-NS-O2
  • P22NRXALDSNS02
  • P22NRXALDSNSO2

P22NRXA-LDS-NS-02 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 1.13 kg
Type: Standard
Thermal Resistance: 6.6 Mounted °C/Watt
Rotor Inertia: 0.025(kg-m²x10¯³)
Holding Torque: .42Nm
Detent Torque: .018 Nm
Encoder Option/Sequence Number: No Feedback/Factory Assigned
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Regular
Termination: Receptacle
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Double/Special
