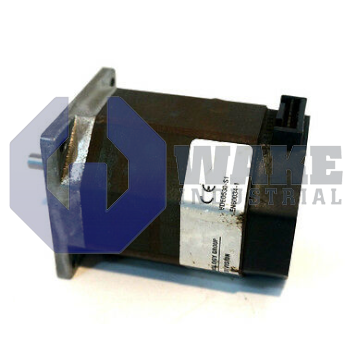

The Pacific Scientific P2HNRXC-LNN-NS-00 is a stepper motor in the POWERMAX II P Motors series with a holding torque of 0.43 N-m and a NEMA 23 frame size. This motor has a rated current per winding of 2.5 Amps, a step angle of 1.8 degrees, and operates with an insulation class B at up to 130°C. It features a regular leadwire connection style, IP23 protection, and measures 40.7 mm in length.
Internal Product Review
The P2HNRXC-LNN-NS-00 is a Pacific Scientific POWERMAX II P stepper motor with a NEMA 23 frame and standard construction. A 1.8-degree step angle and 0.43 N-m holding torque support accurate positioning and dependable low-speed performance. IP23 protection and Class B 130°C insulation make the unit a strong choice for controlled industrial motion applications.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The P2HNRXC-LNN-NS-00 is a hybrid stepper motor produced by Pacific Scientific within the POWERMAX II P Motors series. It converts digital pulse trains from an external drive into controlled angular positions, making it suited for indexing tables, pick-and-place heads, and other mid-torque automation axes. By integrating a standard mounting interface and standardized wiring, the motor can be installed quickly into multi-axis machinery without custom brackets or harnesses. This type of motor is commonly paired with a stepper drive that sequences the phases for repeatable incremental motion.
This model supplies a holding torque of 0.43 N-m from a half-stack magnetic circuit, while a detent torque of 0.018 N-m provides limited resistance when unpowered. The step angle of 1.8 degrees produces 200 full steps per revolution at ±1.5% accuracy, and the low rotor inertia of 0.000007 kg·m² supports rapid acceleration. A NEMA 23 frame with a 40.7 mm body length and a single 6.35 mm smooth shaft simplifies coupling to timing pulleys. The motor draws 2.5 A per phase and has a winding inductance of 2.3 mH, so standard microstepping drives can energize the two coils. It uses regular leadwires that mate with a receptacle, and it has standard construction, a standard rotor, and winding code C.
