P22NRXD-LNF-NS-00 Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
9 Seconds
The Pacific Scientific P22NRXD-LNF-NS-00 is a stepper motor from the POWERMAX II P Motors series with a NEMA 23 frame size and a holding torque of 1.43 N·m. It has a rated current per winding of 2.5 Amps, a step angle of 1.8 degrees, and operates within a temperature range of -20°C to +40°C. The motor features a flat single shaft with a diameter of 6.35 mm and adheres to IP23 protection class.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

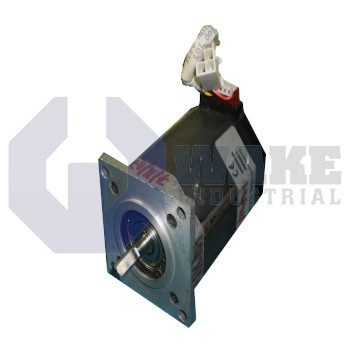

The P22NRXD-LNF-NS-00 is a two-phase hybrid stepper motor manufactured by Pacific Scientific and supplied within the POWERMAX II P Motors series. It uses a regular leadwire harness terminated in a receptacle, which allows a quick plug-in connection to a compatible drive. The unit follows a standard construction format and is supplied without an integral feedback device, so it relies on open-loop pulse control for positioning. In automated pick-and-place cells, small indexing tables, or syringe pumps, the motor converts controller pulses into precise incremental shaft rotation that can be coordinated with other motion axes.
Mechanical dimensions align with the NEMA 23 frame class. The body length is 78.7 mm, and a single 6.35 mm diameter shaft extends 20.60 mm beyond the front face with a 12.7 mm usable flat for set-screw couplings. This flat-shaft arrangement and front mounting flange simplify interchange on legacy brackets. With two rotor stacks and a bipolar parallel winding, the motor develops 1.43 N·m of holding torque while detent torque remains at 0.05 N·m, which supports smooth microstepping at low speed. Each winding draws 2.5 A of rated current through D-type coils with a resistance of 2.44 Ω. The motor has a step angle of 1.8 degrees, producing 200 full steps per revolution with ±1.5% accuracy, and the bipolar scheme helps keep mid-range resonance low.
The motor operates reliably in ambient temperatures from -20 °C to +40 °C and has an IP23 rating, so it should be protected from direct water spray. Class B insulation rated to 130 °C supports normal winding temperature rise, and the motor has 100 megohms of insulation resistance with a 340 Vdc withstand voltage. Dynamic response is supported by a rotor inertia of 0.000025 kg·m², which helps the motor respond quickly to commanded step changes. The magnetic circuit has an inductance of 6.2 mH per phase, supporting rapid current control by modern microstepping drives. Total mass is 1.13 kg, and the standard rotor profile helps keep cogging low for tight velocity regulation.
Frequently Asked Questions about P22NRXD-LNF-NS-00:
Q: What is the shaft configuration and size of the P22NRXD-LNF-NS-00 motor?
A: The P22NRXD-LNF-NS-00 features a single flat shaft with a diameter of 6.35 mm and an extension of 20.60 mm.
Q: What is the holding torque of the P22NRXD-LNF-NS-00 stepper motor?
A: This motor provides a holding torque of 1.43 N·m when wired in a bipolar parallel configuration.
Q: How many steps per revolution does the P22NRXD-LNF-NS-00 motor provide?
A: The P22NRXD-LNF-NS-00 offers a step angle of 1.8 degrees, resulting in 200 steps per revolution.
Q: What are the winding specifications for the P22NRXD-LNF-NS-00 motor?
A: It operates with a rated current of 2.5 A per winding and has a winding resistance of 2.44 Ω.
Q: What insulation and protection ratings does the P22NRXD-LNF-NS-00 motor have?
A: This model is built with insulation class B, rated for temperatures up to 130°C, and a protection class of IP23.
