M22NSXA-LDN-M1-02

  • Rated 4.6 (26 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options
The M22NSXA-LDN-M1-02 by Pacific Scientific is part of the PowerMax II M Motor Series. The M22NSXA-LDN-M1-02 is a NEMA mounting motor featuring a holding torque of 1.62 Nm and a rated current of 6.5 Amps DC. It also holds a phase resistance of 0.84 ohms +/- 10% and phase inductance of 0.70 mH Typical.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

M22NSXA-LDN-M1-02

  • Rated 4.6 (26 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 1-2 Days
  • Call for Expedited Shipping and Product Condition Options
The M22NSXA-LDN-M1-02 by Pacific Scientific is part of the PowerMax II M Motor Series. The M22NSXA-LDN-M1-02 is a NEMA mounting motor featuring a holding torque of 1.62 Nm and a rated current of 6.5 Amps DC. It also holds a phase resistance of 0.84 ohms +/- 10% and phase inductance of 0.70 mH Typical.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a M22NSXA-LDN-M1-02 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

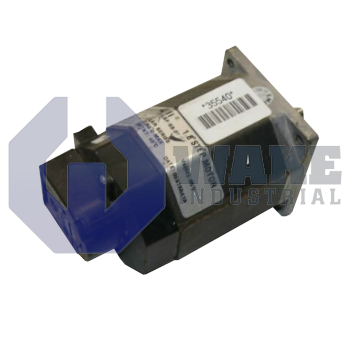

The M22NSXA-LDN-M1-02 is a hybrid step motor from Pacific Scientific. This enhanced two-phase motor is listed among the M series of motors from the manufacturer. The motor which features Sigmax technology is marketed under the brand name POWERMAX II. It is capable of redirecting magnetic flux to optimize torque production and prevent leakage. The device has a frame size of 23 and has two stacks. The unit renders high performance and high-speed efficiency because of its laminated rotor. The product features better current utilization and higher torque production than a standard hybrid of the same size. The step motor comes with a one year Wake Industrial warranty.

The motor is fitted with rare-earth magnetic inserts in the stator. The rotor features neodymium-iron-boron magnets and a precision ground outer diameter. The shaft has a large diameter of 0.375 inches that is bigger than what is usually present on a NEMA 23 size motor. The product features an octagonal shape that results in a simplified automated assembly. This device has a winding type of A to suit any application. It is an apt choice for applications that demand special acceleration requirements. It features NEMA Class B insulation at 130°C and is UL Recognized.

The octagonal housing of the unit displays the stator lamination structure. The stator is fully encapsulated. The motor is capable of withstanding high radial and axial loads. It renders high dynamics and excellent thermal dissipation that is further enhanced by the exposed laminations. The device has a sequence number of 02. The product also has oversized bearings like the shaft diameter. The unit comes with a provision to mount an encoder for feedback. It can be used with various micro-stepping devices from the manufacturer. The step motor can be delivered to any address across the globe through our delivery partners such as DHL, FedEx and UPS.

  • M22 NSXA LDN M1 02
  • M22-NSXA-LDN-M1-02
  • M22NSXA LDN M1 02
  • M22NSXA-LDN-M1-O2
  • M22NSXALDNM102
  • M22NSXALDN-M1-02

M22NSXA-LDN-M1-02 Technical Specifications

:
Detent Torque : 0.12 Nm
Holding Torque: 1.62 Nm
Phase Inductance: 0.70 mH Typical
Phase Resistance : 0.84 ohms +/- 10%
Rated Current/ Phase: 6.5 Amps DC
Thermal Resistance: 4.5 Mounted degree Celsius/ Watt
