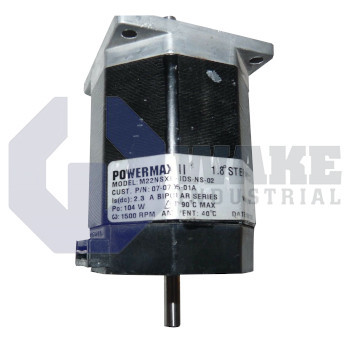

The M22NSXB-IDS-NS-02 by Pacific Scientific is part of the PowerMax II M Motor Series. The M22NSXB-IDS-NS-02 is a NEMA mounting motor featuring a holding torque of 1.79 Nm and a rated current of 4.6 Amps DC. It also holds a phase resistance of 0.38 ohms +/- 10% and phase inductance of 1.5 mH Typical.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

M22NSXB-IDS-NS-02

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
  • Stock: In-Stock, Ships in 3 Days
  • Call for Expedited Shipping and Product Condition Options
The M22NSXB-IDS-NS-02 by Pacific Scientific is part of the PowerMax II M Motor Series. The M22NSXB-IDS-NS-02 is a NEMA mounting motor featuring a holding torque of 1.79 Nm and a rated current of 4.6 Amps DC. It also holds a phase resistance of 0.38 ohms +/- 10% and phase inductance of 1.5 mH Typical.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a M22NSXB-IDS-NS-02 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The M22NSXB-IDS-NS-02 is one of the best step motors from Pacific Scientific. It packs a lot of high-end technologies. The motor runs with a POWERMAX II shell which is known to produce the highest amount of torque output. M22NSXB-IDS-NS-02 is part of the M series models manufactured by the company. The motor uses Sigmax technology to inhibit the magnetic flux leakage by redirecting the flux discharge. This enhances the torque output. The low inertia rotors help produce the highest acceleration. There is also an option to choose standard rotors instead of low inertia rotors.

Leaded connectors are available as options for this motor. The leaded connections are available in 4 different types. Bipolar series, bipolar parallel and unipolar phase connections can be made with the step motor. Rare Earth magnets are integrated into the motor to ensure that the flux discharge is redirected. Due to the large size of the bearings, the parts generally last more than 4 times the normal life span. POWERMAX II increases the fatigue life of the motor by a huge margin. This model has a fatigue lifespan of more than 10,000 hours which is one of the highest.

Samarium cobalt magnets are used in the step motor design. These are used as inserts in the stator and they are used to concentrate the magnetic flux at certain points between the rotor and the stator. This increases current utilization and torque production. This step motor model from Pacific Scientific has some of the best features available. This motor is very flexible in terms of application usage and can be tailored to suit the needs of the industry. A number of add ons are also available for this model. For more detailed information about the various add ons, one must check out the description manual.

  • M22 NSXB IDS NS 02
  • M22-NSXB-IDS-NS-02
  • M22NSXB IDS NS 02
  • M22NSXB-IDS-NS-O2
  • M22NSXBIDSNS02
  • M22NSXBIDS-NS-02

M22NSXB-IDS-NS-02 Technical Specifications

:
Detent Torque : 0.12 Nm
Holding Torque: 1.79 Nm
Phase Inductance: 1.5 mH Typical
Phase Resistance : 0.38 ohms +/- 10%
Rated Current/ Phase: 4.6 Amps DC
Thermal Resistance: 4.5 Mounted degree Celsius/ Watt
