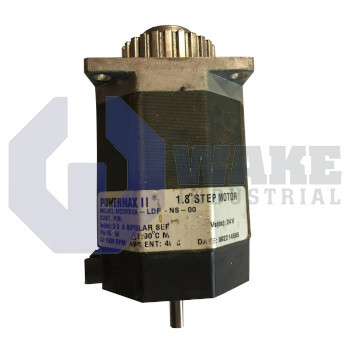

M Series POWERMAX II Hybrid Step Motor manufactured by Pacific Scientific. This POWERMAX II Hybrid Step Motor features NEMA Mounting and a Size of NEMA 23.

M22NRXA-LDF-NS-00

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
M Series POWERMAX II Hybrid Step Motor manufactured by Pacific Scientific. This POWERMAX II Hybrid Step Motor features NEMA Mounting and a Size of NEMA 23.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a M22NRXA-LDF-NS-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The M22NRXA-LDF-NS-00 is a step motor from Pacific Scientific with POWER MAX II technology. This particular motor is NEMA 23 hybrid step motor with stator teeth which contain rare earth magnets. It has the ability to produce a holding torque of up to 253 oz.-in and therefore is a very powerful two-inch stepper. The motor is economical while being highly functional, highly durable and having the ability to stand the test of time and a heavy workload.

This step motor features a new type of stator which is polymer encapsulated. The end bell features threaded inserts and is manufactured from this new polymer as well. The end bells on this motor from Pacific Scientific are designed to run cooler. This allows them to provide a greater amount of flexibility when mounting brake and encoder options.

The M22NRXA-LDF-NS-00 motor is manufactured with the use of Sigmax Technology. The unit has the ability to give the end user an option or a solid rotor or a low inertia rotor. Being that this motor is designed to be economical it features a precision ground rotor OD along with a Hone stator ID which allows for a concentric air gap. This air gap along with laminations aids which are exposed help to improve thermal dissipation and protect the step motor from overheat and any possible accompanying damage.

With high-performance Gearheads, the M22NRXA-LDF-NS-00 is a very dependable hybrid step motor with a high-quality build. It is designed with the ability to withstand both high axial, as well as radial loads and is designed so that it can support a number of different shaft modifications. The unit’s design features also further help to reduce downtime, extend the life of the motor and also to increase the available torque of the motor.

  • M22 NRXA LDF NS 00
  • M22-NRXA-LDF-NS-00
  • M22NRXA LDF NS 00
  • M22NRXA-LDF-NS-OO
  • M22NRXALDFNS00

M22NRXA-LDF-NS-00 Technical Specifications

Type Enhanced
Encoder Option/Sequence Number No Feedback/Standard
Size NEMA 23
Number of Stacks 2 Stacks
Mounting NEMA
Construction Regular
Termination Receptacle
Winding Type per assigned letter
Rotor Type Standard
Shaft Configuration & Shaft Modification Double/Flat
